2-12 Core GYFTW (GYFXTY) Non-Metallic Strength member FRP Central Loose Non-Armored FTTH Fiber Optic Cable

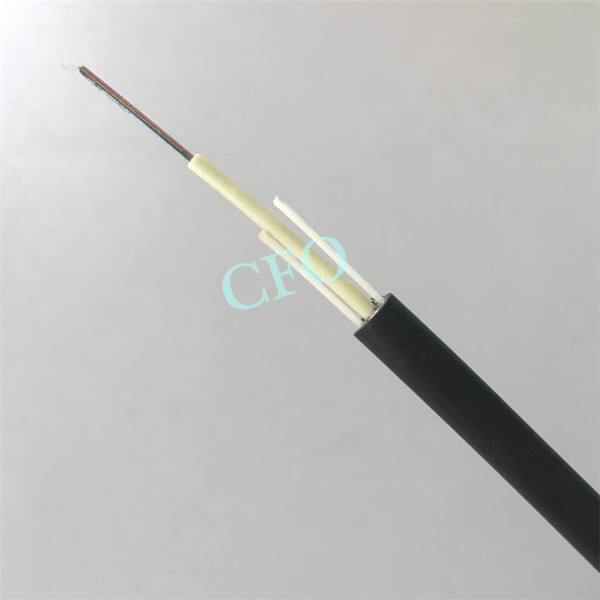

2-12 Core GYFTW (GYFXTY) Non-Metallic Strength member FRP Central Loose Non-Armored Fiber Optic Cable Non-metal Central Loose Tube Outdoor Cable can be used in outdoor distribution, trunk power transmission system, and more importantly, it is suitable for access network and local network in high electromagnetic interfering places. The loose tube filled with grease provides special protection for the fiber. The filling compound has the water resistant performance. The two parallel FRP strength member has an excellent anti-electromagnet ability and improve the tensile strength. The cable is completed with the LSZH (LSZH, Low smoke, Zero halogen) material jacket, which has good flame retardant performance.

Fiber Type: OS2 9/125 G652D /OM1 62.5/125μm Multimode – OM2 50/125μm Multimode – 10G OM3 50/125μm Multimode – 10G OM4 50/125μm Multimode (Other Fiber available Too)

Features:

– Non-metal strength member ensures excellent anti- electromagnetic performance.
– Good fame retardant performance.
– Low shrinkage and high tensile strength.
– The loose-tube design isolates the fibers from outside environmental and mechanical stresses.
– Low Smoke Zero Halogen Available.

Reference Standard

IEC 60794-1-1/2
IEC 60794-2
IEC 60794-3
IEC 60794-3-10/11
IEC 60794-1-2-E1/E3/E4/E6
IEC 60794-1-2-E11A
IEC 60794-1-2-F5B
IEC 60794-1-2-F1

Application:

– Trunk power transmission system
– Access network and local network
– High electromagnetic interfering places
– Outdoor distribution

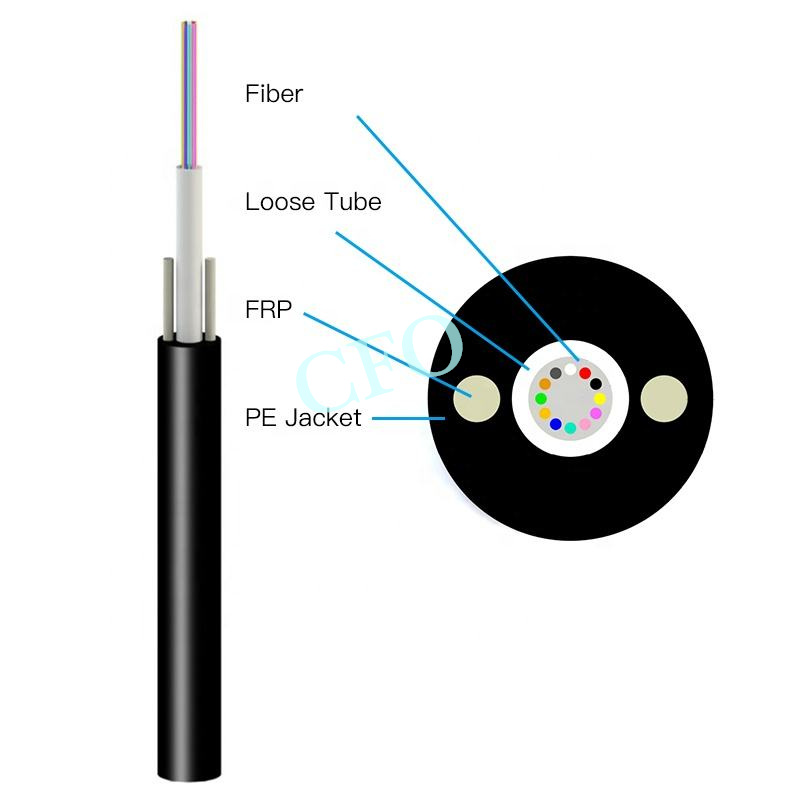

Structure Design:

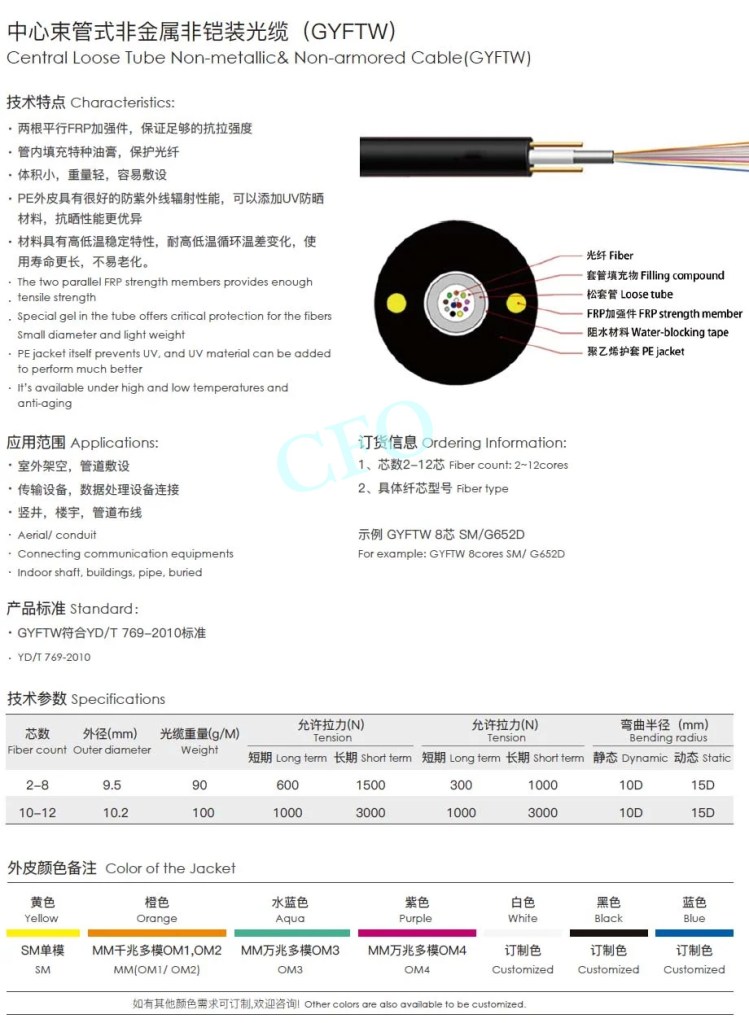

Cable Technical Parameter:

Specification of Optical Fiber:

Note.

1 .Flooding jelly compound default

2.The relevant technical parameters can be adjusted according to the customers’ demands;
3.The block water way can be adjusted according to the customers’ demands,

4.The design flame resistance,anti-rodent,termite resistant cable according to the customers’demands

How to Ensure the Quality and Performance of Your Fiber Optic Cable?

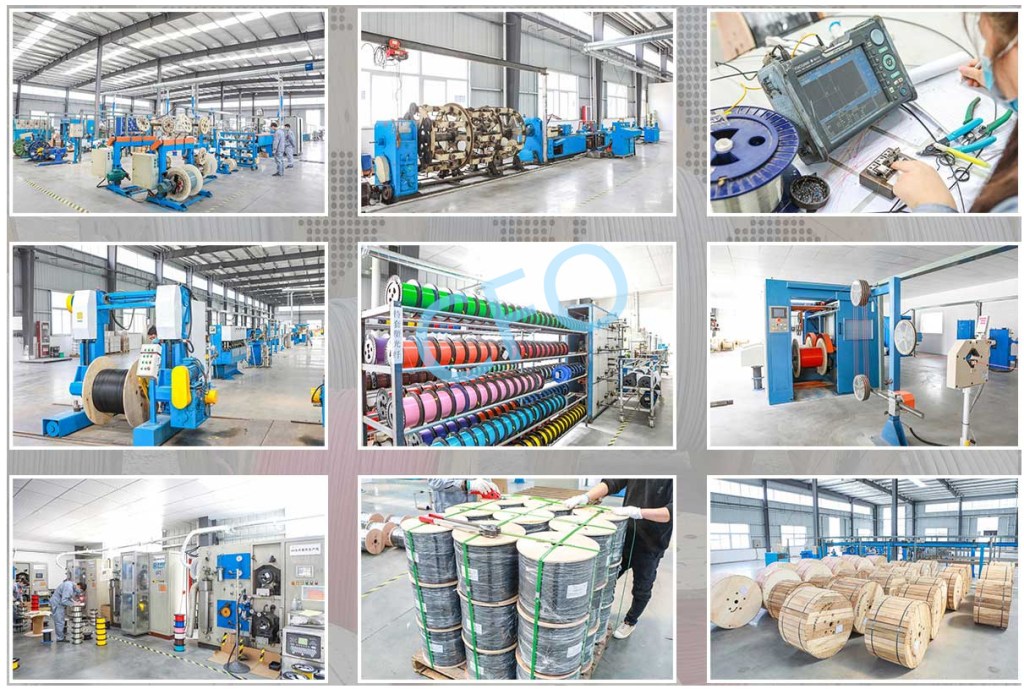

We conrol the product quality from the raw maielal to the finish porduts. All the raw maielal shoud be tesied to match the Rosh standard when they arrived at our manuafacture. We contothe qualty duning the producing process by advanced techmolgy and equipments. We test the finished products according to he test standard. Approved by various proffesional opical and communication product institution. We also conduct various in-house testing in is own laboratary and test Center. we also conduct test with spcial arrangement with the chinese Government Ministry of QualityS upervision & Inspection Center of Optical Communication Products(QSICO).

Quality Control . Test Equipment and Standard:

Feedback: In order to meet the world’s highest quality standards,
we continuously monitor feedback from our customers.
Forcomments and suggestions,please.contact us

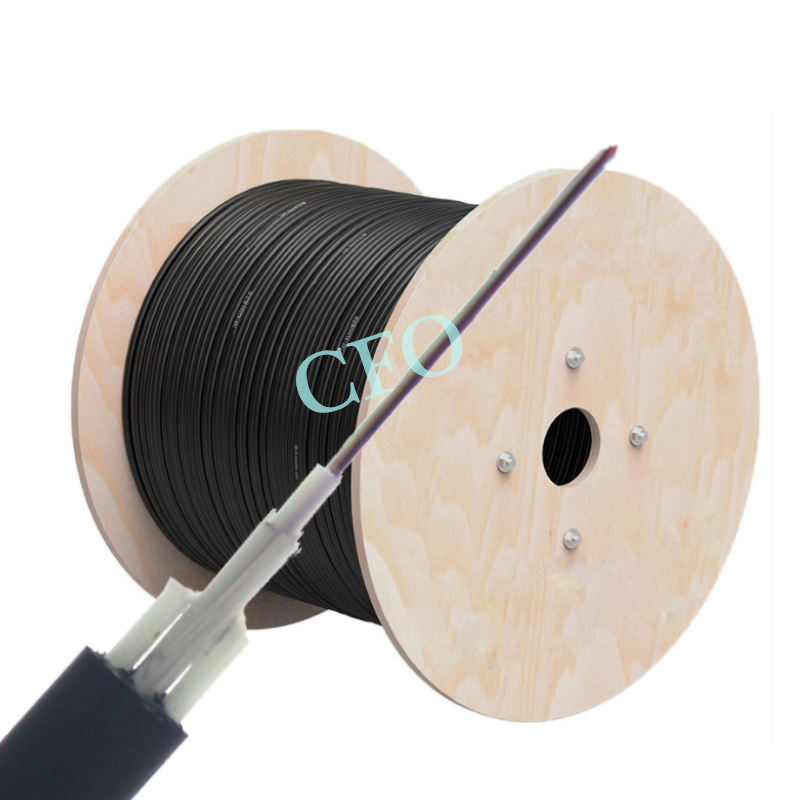

Packaging Details :
1-5KM per roll. Packed by steel drum . Other packing available according to client’s Request.

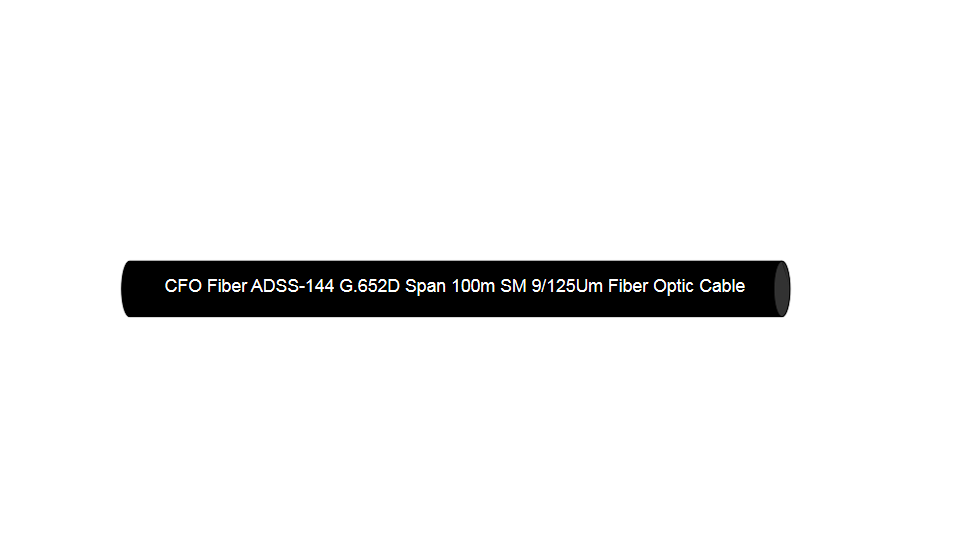

Sheath Mark:

The folowing printing(white hot folil indentations applied at 1 meter intenals.
a. Supplier. CFO or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count;
c. Year
of manufacture:7 years,
d. Length marking in meters.

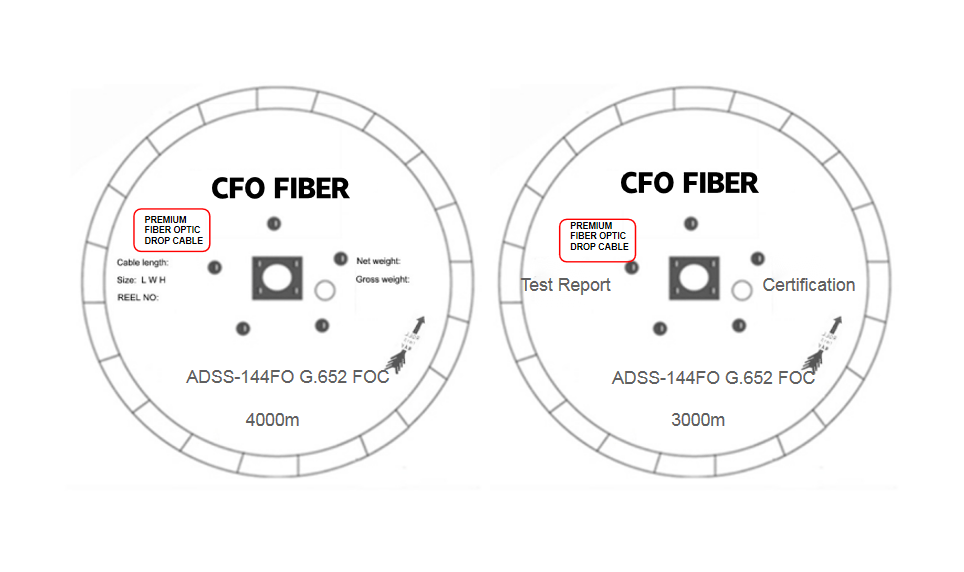

Drum Mark:

Port :

Shanghai/Guanazhou/Shenzhen

Lead Time :

1)1-300KM: 15days

≥300KM: To be negotiated!

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment

The cables are coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing. protected from mechanical stress and damage.

Contact our professional consultants freely If you have any question & needs.
