The 6 Core FTTH Aerial Self-Support Drop Cable GJYXFCH is a high-quality fiber optic drop cable designed for use in fiber-to-the-home (FTTH) applications. The cable features six fibers and is designed for aerial self-support installations. The cable is easy to install and maintain, and it is suitable for use in a variety of network environments. The 6 Core FTTH Aerial Self-Support Drop Cable GJYXFCH is also known as 6 Core FTTH Drop Cable, and it is commonly used in telecommunications, broadband, and CATV networks.

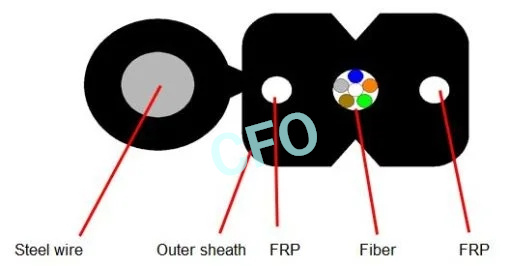

Self-supporting FTTH drop cable is constructed with one or two or more single-mode fiber (G.657A ). The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.

Specifications:
●Fiber count: 6
●Cable type: Drop cable
●Cable length: 1000 meters
●Jacket material: LSZH
●Fiber Count: 6F
●Self-supporting Strength member: Solid Steel wire/ Stranded Steel wire 1.0mm
●Strength member: FRP/KFRP/Solid Steel wir 0.45-0.52mm
●Cable diameter(mm) :Approx. 2.3*6.0(±0.1)
●Cable weight(kg/km) :Approx 20/21.5
●Tensile Strength Short/ Long Term(N): 800/400
●Crush resistance short/long term (N/100mm): 2200/1000
●Operating temperature range(°C): -40°C ~+70°C

Features:
●High-quality fiber optic drop cable
●Six fibers for efficient data transmission
●Aerial self-support design for easy installation
●Made of high-quality materials for durability and protection
●Self-supporting structure, light weight, easy to install
●Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
●Steel wire as additional strength member has high tensile strength
●Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
●Simple structure, light weight and high practicability
●Fibers count is 1-12 cores, can be other fiber cores upon request.
●Novel flute design, easily strip and splice, simplify the installation and maintenance
●Durable and flame retardant LSZH sheath, low smoke zero halogen

Benefits:
●Provides reliable and efficient communication for FTTH applications
●Ensures easy and quick installation
●Suitable for use in a variety of network environments
●Provides protection for the fiber optic cables

Applications:
●Fiber-to-the-home (FTTH) networks
●Telecommunications networks
●Broadband networks
●CATV networks
●Outdoor aerial application
●Used in the FTTH projects
●High speed optical routes in building
●High performance optical network operatio

Standards:
●Compliant with RoHS and REACH regulations

CFO is one of the leading China manufacturers and suppliers providing you with 6 Core FTTH Fiber Drop Cable G.657A2 FRP LSZH GJXFH. Our factory has applied the most advanced equipment and technology to better serve you.
