6-8-12-24 Core GJFPV Breakout Tight Buffer Fiber Optic Cable use simplex cable(Φ900µm tight buffer fiber, aramid yarn as strength member) as subunit. A fiber reinforced plastic(FRP) locates in the center of core as a non-metallic strength member.

What is 6-8-12-24 Core GJFPV Breakout Tight Buffer Fiber Optic Cable?
6-8-12-24 Core GJFPV Breakout Tight Buffer Fiber Optic Cable use simplex cable(Φ900µm tight buffer fiber, aramid yarn as strength member) as subunit. A fiber reinforced plastic(FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket. Multi Purpose Breakout cable uses simple cable (900μm tight buffer fiber, aramid yarn as strength member) as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low Smoke, Zero halogen, Flame-retardant) jacket.

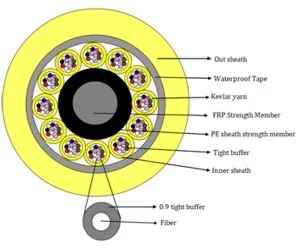

Cable construction

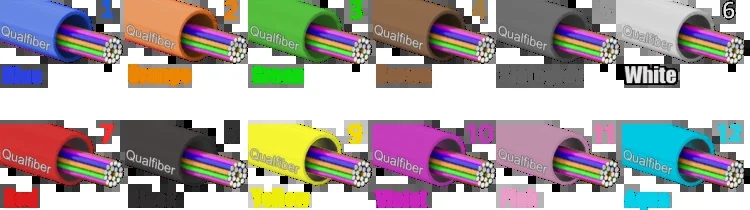

Loose tube color can be all single color customized(yellow) or the list below

Fibers’ outside tight buffer color

Cable Mechanical characteristic

Package

1.Packing material: Wooden drum
2.Packing length: The standard length of the cable shall be 2 km. Other cable length packaging is also available
if required by the customer

Application GJFPV Breakout Tight Buffer Fiber Cable
●Indoor level and vertical laying.ceiling laying surface laying etc.
●Suitable for patch cords and pigtails .

Characteristics:
●Multi single-cable design.
●Single-cable with independent strength member.
●Non-metal central strength member.
●Fiber count:2~24
