Fiber Patch Cord & Cable Assembly, often called fiber patch cable, fiber jumper, or fiber patch lead, is a length of fiber cable that terminated with fiber optic connectors (LC, SC, MTRJ, ST and etc.) at each end.

The connectors allow fiber optic patch cord to be rapidly connected to an optical switch or other telecommunications/computer device. Fiber jumper is a key player for indoor use, like in server rooms or in data centers. Featuring excellent reliability, superior adaptability, and improved security, fiber patch cord has ranked the best choice for applications where conventional copper cables fail to reach.

We have variety of fiber optic patchcords or fiber patch cables which are set to be the future method of connecting

●Indoor Fiber Optic Patch Cords
●FTTH Drop Cable Patch Cords
●Bundle Fan-out Fiber Patch Cords
●Armored Fiber Patch Cords
●Military Grade Tactical Patch Cord/Patch Cable
●Mode Conditioning Fiber Patch Cords
●IP67 Outdoor Fiber Cable Assembly
●ODVA Outdoor Cable Assembly
●FULLX/FullAxs Outdoor Fiber Cable Assembly
●Optitap H Connector Outdoor Fiber Cable Assembly
●IPFX Fiber Outdoor Cable Assembly
●AARC/ODLC ODMC Outdoor Fiber Cable Assembly
●PDLC Outdoor Cable Assembly
●CPRI Outdoor Fiber Cable Assembly
●NSN Boot Fiber Optic Jumper Cable Assembly
●FTTA Cable Assembly With NSN Boot ODVA ODLC FULLAxs
●MPO/MTP Patch Cords Patch Cable Assemblies
●MT Patch Cords MT-MT MT-FA Patch Cable
●MPO/MTP Harness Cables
●MTP/MPO-LC Harness Breakout Cables
●MTP/MPO Trunk Harness Cables
●MTP/MPO Conversion Harness Cables

We provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ, E2000 connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.

Fiber Patch Cord & Cable Assembly can have female or male connectors. Female connectors could be mounted in a patch panel, often in pairs although single-fiber solutions exist, to allow them to be connected to endpoints or other fiber runs with patch fibers. Alternatively they can have male connectors and plug directly into an optical transceiver.

Please be free to buy our Fiber Patch Cord & Cable Assemblyl | Multi Mode G651.OM4 | 0.9mm products with competitive price. The customized service and the quotation consultation are available.

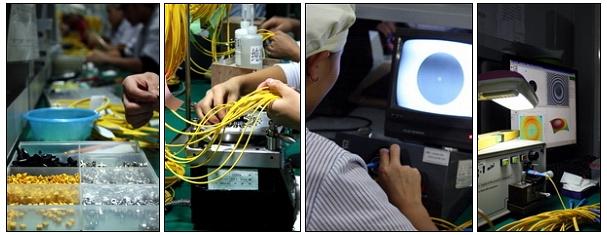

Quality production Stages For Fiber Patch Cord & Cable Assembly.
So what should be taken into consideration when choosing a ‘good‘ Fiber Patch Cord & Cable Assembly | Multi Mode G651.OM4 | 0.9mm? What are the features that one should look for that defines the quality of any connector,pigtail or jumper assembly? In order to appreciate the significance of a standard compliant product, one must first understand the process of actually making an optical connector assembly and the potential problems that could occur at each of the stages.

There are three main processes in the termination of aFiber Patch Cord & Cable Assembly, Preparation, Termination and Polishing and a total of 15 steps where negligence at any one of the steps will result in an inferior pigtail assembly. Each process consists of small steps, and each step requires strict Quality Control of not only the equipment used, but also how each step is carried out.

Preparation of fiber cable

1. Stripping of outer cable jacket
2. trimming of kevlar fibers to length
3. Stripping of 900um buffer
4. clean bare fiber
5. check fiber for damage
6. mix two part epoxy
7. degas epoxy
8. check ferule id

Termination of fiber cable

1. inject epoxy and insert fiber
2. crimp kevlar to back post
3. crimp outer jacket
4. cure connector in oven

Polishing of connector end face

1. cleave fiber
2. Remove excess epoxy by hand or machine
3. polish end-face by grinding machine

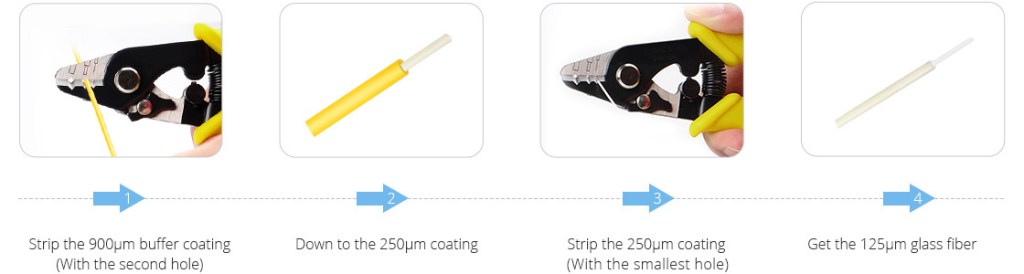

How to Strip Fiber Optic Pigtail with Tri-Hole Fiber Stripper?

A Variety of Applications for Different Equipments
Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, data processing networks, LAN/WAN network, and more.

CFO is one of the leading China manufacturers and suppliers providing you with Fiber Patch Cord & Cable Assembly. Our factory has applied the most advanced equipment and technology to better serve you.

Contact our professional consultants today.
