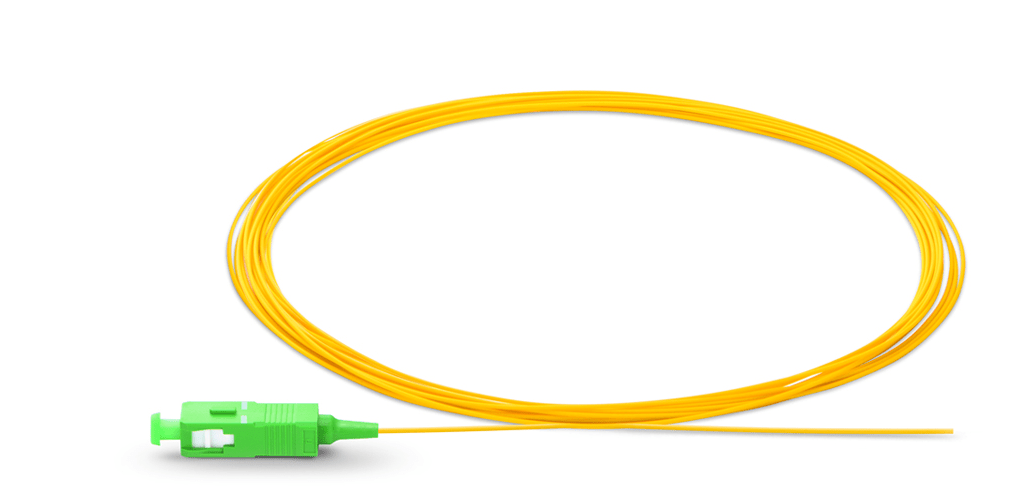

Pigtail SC/APC SM(G657A2) OS2 9/125 SX 2mm LSZH 1.5M A fiber pigtail is a single, short, usually tight-buffered, optical fiber that has an optical connector pre-installed on one end and a length of exposed fiber at the other end.The end of the pigtail is stripped and fusion spliced to a single fiber of a multi-fiber trunk
Fiber Optic Pigtail – Ideal for Splicing
pigtail sc/apc sm is utilized to achieve accurate mounting on precision alignment of fiber optical components.
ZIRCONIA CERAMIC FERRULE OPTIMUM IL AND RL.
0.9MM CABLE AVAILABLE FOR HIGH DENSITY SPLICING APPLICATIONS.
TIGHT BUFFER PIGTAIL FOR EASE OF SPLICING.

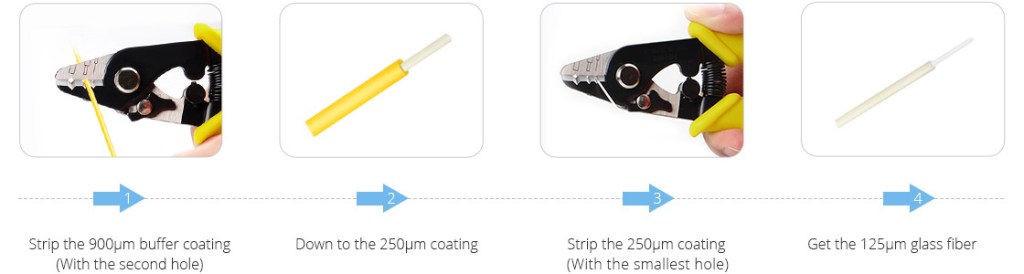

How to Strip Fiber Optic Pigtail with Tri-Hole Fiber Stripper pigtail sc/apc sm
Tips:
- It is recommended to heat the pigtail appropriately before you strip the 0.9mm buffer.
- Only a short length (1-2cm) of the pigtail is suggested to be stripped in one action.
Fiber Optic Pigtail Types
Fiber optic pigtails are available in various types: Grouped by pigtail connector type, there are LC fiber optic pigtails, SC fiber pigtails and ST fiber pigtails, etc. By fiber type, there are single-mode fiber optic pigtail and multimode fiber optic pigtail. And by fiber count, 6 fibers, 12 fibers optic pigtails can be found in the market.
By Fiber Type
Fiber optic pigtails can be divided into single-mode (colored yellow) and multimode (colored orange) fiber. Multimode fiber optic pigtails use 62.5/125 micron or 50/125 micron bulk multimode fiber cables and terminated them with multimode fiber optic connectors at one end. 10G multimode fiber cables (OM3 or OM4) are also available in fiber optic pigtails. The jacket color of 10G OM3 and OM4 fiber optic pigtail is usually aqua. Single-mode fiber pigtail cables use 9/125 micron single-mode fiber cable and terminated with single-mode fiber connectors at one end.
By Connector Type
According to different types of pigtail cable connector terminated at the end, there are LC fiber pigtail, SC fiber pigtail, ST fiber pigtail, FC fiber pigtail, MT-RJ fiber pigtail, E2000 fiber pigtail and so on. With different structures and appearance, each of them has their own advantages in different applications and systems. Let’s go through some widely used ones.
SC Fiber Optic Pigtail: SC pigtail cable connector is a non-optical disconnect connector with a 2.5mm pre-radiused zirconia or stainless alloy ferrule. SC fiber pigtail is economical for use in applications such as CATV, LAN, WAN, test and measurement.
FC Fiber Optic Pigtail: FC fiber pigtail takes the advantage of the metallic body of FC optical connectors, featuring the screw type structure and high precision ceramic ferrules. FC fiber optic pigtails and its related products are widely applied for the general applications.
ST Fiber Optic Pigtail: ST pigtail connector is the most popular connector for multimode fiber optic LAN applications. It has a long 2.5mm diameter ferrule made of ceramic (zirconia), stainless alloy or plastic. Hence SC fiber pigtails are commonly seen in telecommunications, industry, medical and sensor fields.
Like fiber optic patch cords, fiber optic pigtails can be divided into UPC and APC versions. Most commonly used types are SC/APC pigtail, FC/APC pigtail and MU/UPC pigtail.
By Application Environment
Some pigtail cables are specially installed to withstand the harsh or extreme environments, so here comes armored fiber pigtail and waterproof fiber pigtail.
Armored Pigtail: enclosed with stainless steel tube or other strong steel inside the outer jacket, armored fiber optic pigtails provide extra protection for the fiber inside and added reliability for the network, while reduce the unnecessary damage caused by rodents, construction work, weight of other cables.
Waterproof Pigtail: designed with a stainless steel strengthened waterproof unit and armored outdoor PE (Poly Ethylene) jacket, waterproof fiber pigtail is a great fit in harsh environments, like communication towers, CATV and military. Waterproof pigtail cable boosts good toughness, tensile and reliable performance, facilitating the use in outdoor connections.
By Fiber Count
Fiber optic pigtails could have 1, 2, 4, 6, 8, 12, 24 and 48 strand fiber counts. Simplex fiber optic pigtail has one fiber and a connector on one end. Duplex fiber optic pigtail has two fibers and two connectors on one end. Each fiber is marked “A” or “B” or different colored connector boots are used to mark polarity. Similarly, 4, 6, 8, 12, 24, 48 and more than 48 fibers fiber optic pigtails have their corresponding feature.
Note: Fiber pigtails have female or male connectors. Female connectors could be mounted in a patch panel. And they also have male connectors that plugged directly into an optical transceiver.
Like fiber optic patch cords,pigtail can be divided into UPC and APC versions. Most commonly used types are SC/APC pigtail, FC/APC pigtail and MU/UPC pigtail.
A pigtail is a single, short, usually tight-buffered, optical fiber that has an optical connector pre-installed on one end and a length of exposed fiber at the other end.
The end of the pigtail is stripped and fusion spliced to a single fiber of a multi-fiber trunk. Splicing of pigtails to each fiber in the trunk “breaks out” the multi-fiber cable into its component fibers for connection to the end equipment.
Pigtails can have female or male connectors. Female connectors could be mounted in a patch panel, often in pairs although single-fiber solutions exist, to allow them to be connected to endpoints or other fiber runs with patch fibers. Alternatively they can have male connectors and plug directly into an optical transceiver.
Please be free to buy our Fiber Pigtail | Multi Mode G651.OM4 | 0.9mm products with competitive price. The customized service and the quotation consultation are available.
Quality production Stages For Fiber Optic Pigtaill.
So what should be taken into consideration when choosing a ‘good‘ Fiber Pigtail | Multi Mode G651.OM4 | 0.9mm? What are the features that one should look for that defines the quality of any connector,pigtail or jumper assembly? In order to appreciate the significance of a standard compliant product, one must first understand the process of actually making an optical connector assembly and the potential problems that could occur at each of the stages.
There are three main processes in the termination of a Fiber Optic Pigtail, Preparation, Termination and Polishing and a total of 15 steps where negligence at any one of the steps will result in an inferior pigtail assembly. Each process consists of small steps, and each step requires strict Quality Control of not only the equipment used, but also how each step is carried out.
Preparation of fiber cable
- Stripping of outer cable jacket
- trimming of kevlar fibers to length
- Stripping of 900um buffer
- clean bare fiber
- check fiber for damage
- mix two part epoxy
- degas epoxy
- check ferule id
Termination of fiber cable
- inject epoxy and insert fiber
- crimp kevlar to back post
- crimp outer jacket
- cure connector in oven
Polishing of connector end face
- cleave fiber
- Remove excess epoxy by hand or machine
- polish end-face by grinding machine
A Variety of Applications for Different Equipments
Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, data processing networks, LAN/WAN network, and more.
CFO is one of the leading China manufacturers and suppliers providing you with Fiber Optic Pigtails. Our factory has applied the most advanced equipment and technology to better serve you.
