H Connector Optic SCAPC Outdoor Cable Assembly

H Optic (SC/APC) Outdoor Cable Assembly The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.

Categories: Fiber Optic Patch Cord & Cable Assembly, FTTA Cable Assembly With NSN Boot ODVA ODLC FULLAxs, FTTH Drop Cable Patch Cords, FTTH Products, Optitap H Connector Outdoor Fiber Cable Assembly
Tags: Amphenol’s H-Connector, best outdoor fiber optic cable, H Connector, h optics, outdoor fiber cable types, outdoor fiber connector, outdoor fiber optic cable price, outdoor fiber optic connector

H Connector Optic (SC/APC) Outdoor Cable Assembly H optic with indoor cable H optic with round drop cable Waterproof Fiber Optic Patch Cord

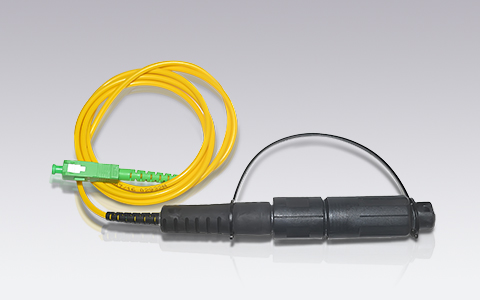

H Connector Optic (SC/APC) Outdoor Cable Assembly H optic with indoor cable H optic with round drop cable Waterproof Fiber Optic Patch Cord assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.

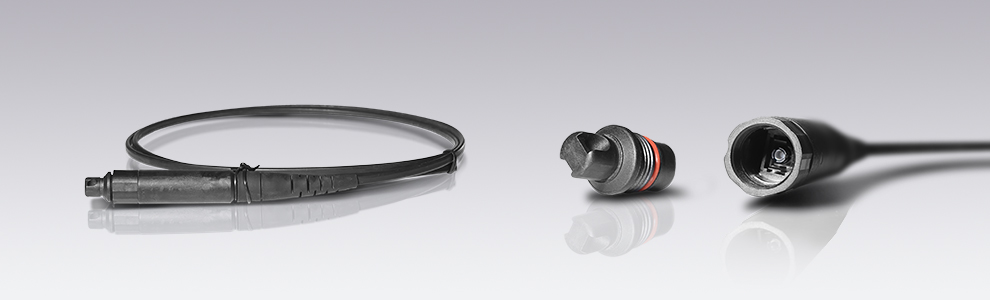

H-Connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H-Connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the H-Connector provides an ideal solution for direct burial, conduit, or aerial installations.

APPLICATION
●FTTH
●Outdoor Areas
●Harsh Environment

FEATURES
◆Single fiber, SC-based connector
◆Bird proof and rodent resistant
◆IP67 water and dust protection
◆Low profile in-line receptacle available
◆No installation tools required
◆In-line connection available
◆Cable diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm

Description of H connector

▶H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.

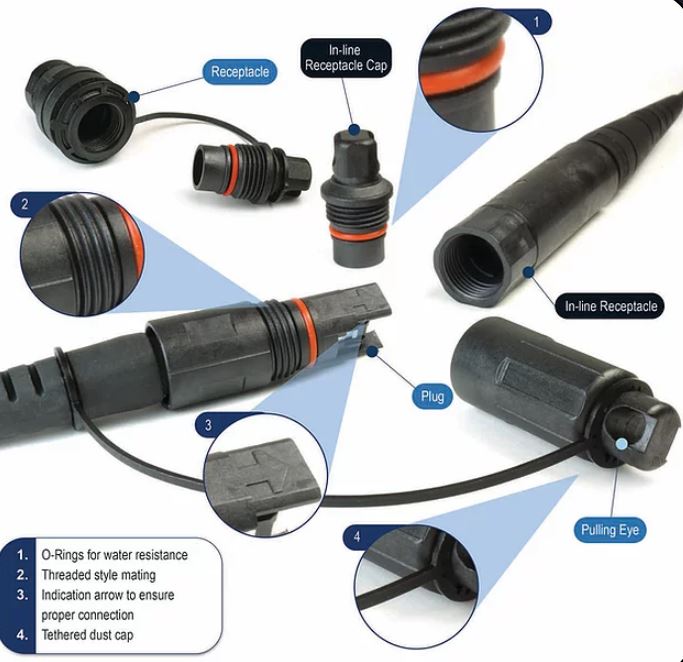

▶The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
▶The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications

Benefits

○Allows flexibility to use factory terminated assemblies
○Provides superior weather resistance for FTTH and other outdoor applications
○Ensures functionality in harsh weather environments
○Can be used with industry standard cable designs
○Easily installs without special tooling
○Threaded style coupling
○Provides bend protection for installation and long term use

Features

◇Single fiber, SC-based connector
◇Bird proof and rodent resistant
◇IP68 water and dust protection
◇Low profile in-line receptacle available
◇No installation tools required
◇100 minimum mating cycles
◇In-line connection available
◇Operating temperature: -40° to 85°C
◇Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm
◇33 lb. axial cable retention (150N)

Applications

♠FTTH
♠Outdoor Areas
♠Harsh Environment

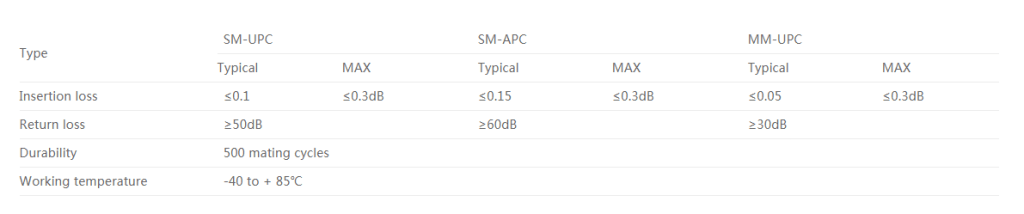

Insertion Loss:

▲≤ 0.15dB Typical Singlemode
▲≤ 0.23dB Typical APC
▲≤ 0.50dB Typical Multimode

Return Loss:

▼Ultra (UPC) ≤ -55dB
▼Angle (APC) ≤ -65dB

Durabilty:

♦< 0.2dB change, 100 mating cycles

Temperature:

♦<0.3dB change, -40 to +85°C

CFO is one of the leading China manufacturers and suppliers providing you with Optitap H Connector Fiber Optic Cable assemblies. Our factory has applied the most advanced equipment and technology to better serve you.

Contact our professional consultants today.
