SC LC FC FBT Fiber Coupler Splitters ABS Module Multimode 1×2

SC LC FC FBT Fiber Coupler Splitters ABS Module Multimode 1×2 fbt coupler,fbt coupler splitter,fbt optical coupler,fused biconical taper,fused biconical taper (fbt) splitter,fused biconical taper (fbt) coupler,fused biconical taper coupler,fused biconical tapered fiber couplers

Categories: FBT Fiber Optic Splitters, Fiber Optic Splitters, Fused Fiber Optic Couplers
Tags: fbt coupler, fbt coupler splitter, fbt optical coupler, fiber optic splitter, fused biconical taper, fused biconical taper (fbt) coupler, fused biconical taper (fbt) splitter, fused biconical taper coupler, fused biconical tapered fiber couplers

What Is FBT Fiber Coupler Splitters ABS Module Multimode 1×2 ?
SC LC FC FBT Fiber Coupler Splitters ABS Module Multimode 1×2 Fused Biconic Taper (FBT) coupler, also be called FBT splitter, based on the traditional technology, it is to bundle together two or more optical fibers, and then pull the cone machine melt stretching, and real-time monitoring the change of the ratio, spectral ratio requirements after melt stretching, one side retain a single fiber (the rest of the cut) as input, the other end is a multi-channel output.

As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor) because the FBT coupler are highly stable for multiport optical signal splitting with low insertion loss. FBT couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment

CFO‘s Multimode Fiber Optic Coupler(MM FBT Coupler ) are fabricated from multimode fibers with core diameters of 50um ,62.5um or 100um. Standard multimode couplers are commonly used in short distance communications with LED sources operating at 1310nm or 850nm. Multimode couplers are wavelength independent over a broad range of wavelengths (600nm to 1610nm) with uniform modal power distribution launch condition, multimode tree/star couplers NX4(n=1,2,4) NX8(n=1,2,8) NX16(n=1,2,16) port ratios are available.

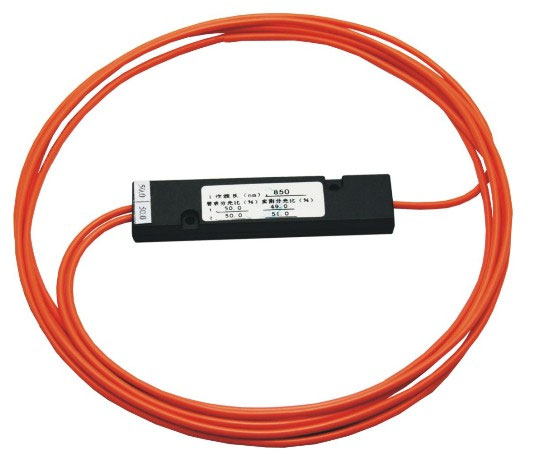

Product Name : FBT Multimode Fiber Coupler Splitter – ABS Module Type

Port Configuration : 1×2 or 2×2

Maximum lnsertion loss (dB): 4.2~4.5

Coupling Ratio(%) : 50/50

Key Feature Low Excess Loss Uniform Power Splitting Rugged Package Excellent Environmental & Mechanical Stability

Applications Long-haul Telecommunications Digital, Hybrid and AM-Video Systems CATV Systems High Speed Local Area Networks Fiber Sensors

Looking for ideal FBT Fiber Coupler Splitters ABS Module Multimode 1×2 Manufacturer & supplier ? CFO have a wide selection at good prices to help you get creative. All the FBT Fiber Coupler Splitters ABS Module Multimode 1×2 are quality guaranteed. We are China Origin Factory of FBT Fiber Coupler Splitters ABS Module Multimode 1×2. If you have any question, please feel free to contact us.

fbt coupler,fbt coupler splitter,fbt optical coupler,fused biconical taper,fused biconical taper (fbt) splitter,fused biconical taper (fbt) coupler,fused biconical taper coupler,fused biconical tapered fiber couplers

CFO is one of the leading China manufacturers and suppliers providing you with SC LC FC FBT Fiber Coupler Splitters ABS Module Multimode 1×2. Our factory has applied the most advanced equipment and technology to better serve you.
