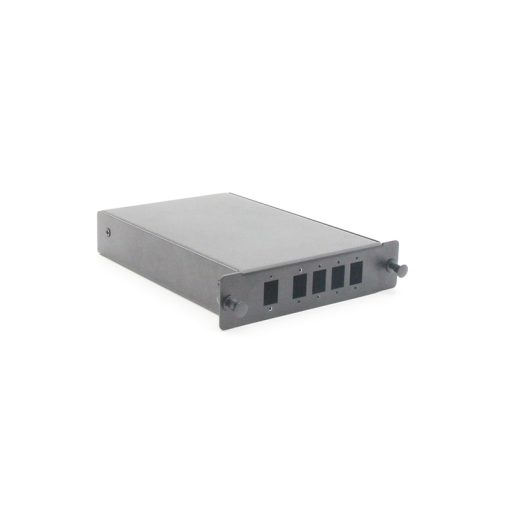

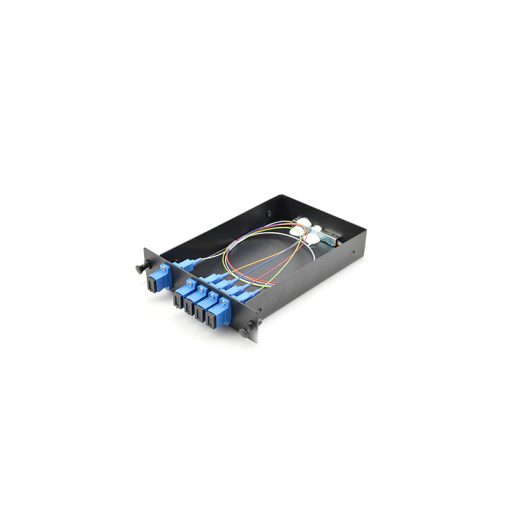

Rack Mount PLC Splitter LGX Module Chassis Cassette

1×4 1×8 1×16 Rack Mount PLC Splitter LGX Module Chassis Cassette What Is 1U/2U/3U Slide-out Rack Mount PLC Splitter Singlemode Type LGX Module

Categories: LGX PLC Splitters, Rack Mount PLC Splitters

Tags: 3u lgx chassis, frame vs chassis, lgx cassette, lgx cassette dimensions, lgx chassis, lgx chassis for sale, lgx chassis price, lgx module, lgx module dimensions, lgx mpo cassette, lgx/1000-splice-cassettes, rack mount plc splitter

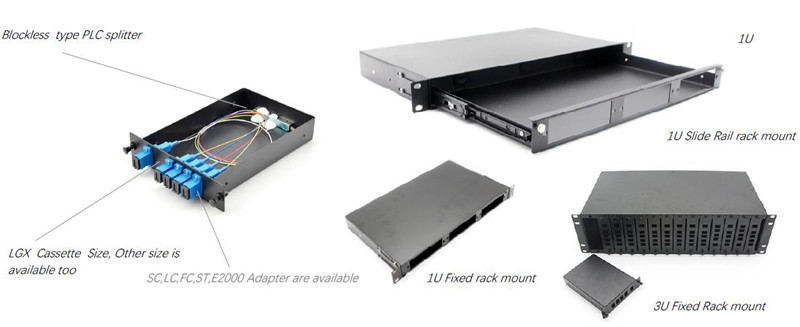

1×4 1×8 1×16 Rack Mount PLC Splitter LGX Module Chassis Cassette Is 1U/2U/3U Slide-out Rack Mount PLC Splitter Singlemode Type LGX Module
1×4 1×8 1×16 Rack Mount PLC Splitter LGX Module Chassis Cassette Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity,It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

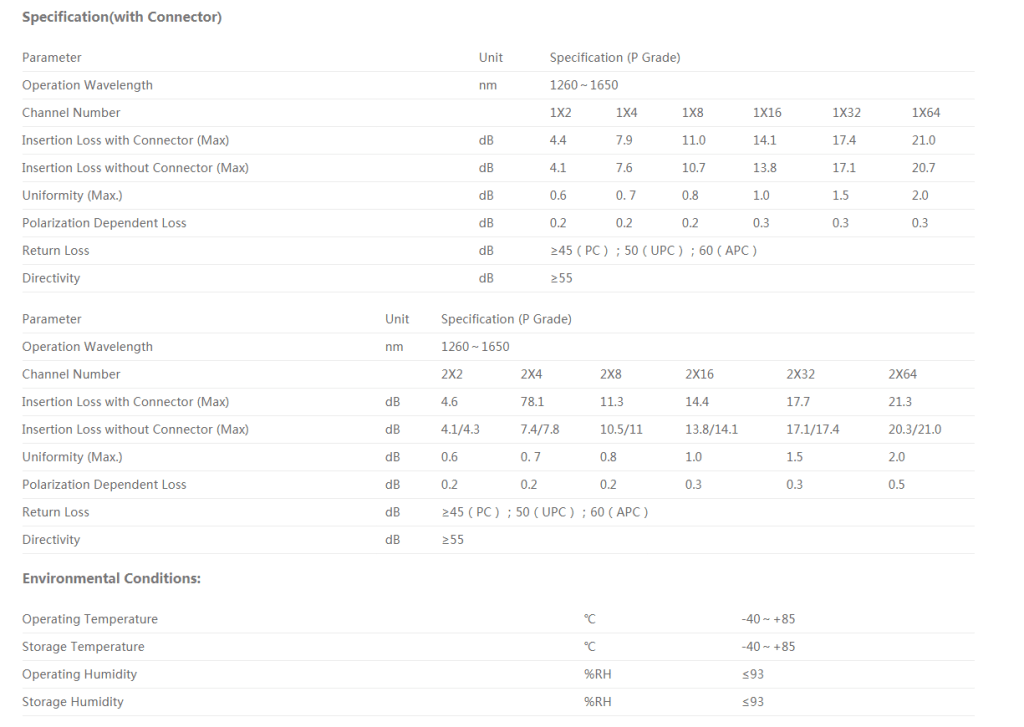

Product Name : Rack mount Fiber PLC Splitter – Module Design
Fiber Type : G657A1
Pigtail Cable : 900μm
Operation Wavelength : 1260~1650nm
Directivity : ≥55dB
Return Loss : APC≥60dB,UPC≥50dB;PC≥45dB
Operating Temperature : -40～+85℃
CFO ‘s Rack mount Modular design PLC Splitter family has 1×2, 1×4, 1×8, 1×16, 2×2, 2×4, 2×8, 2×16, PLC splitter,with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.

Dimension (mm)

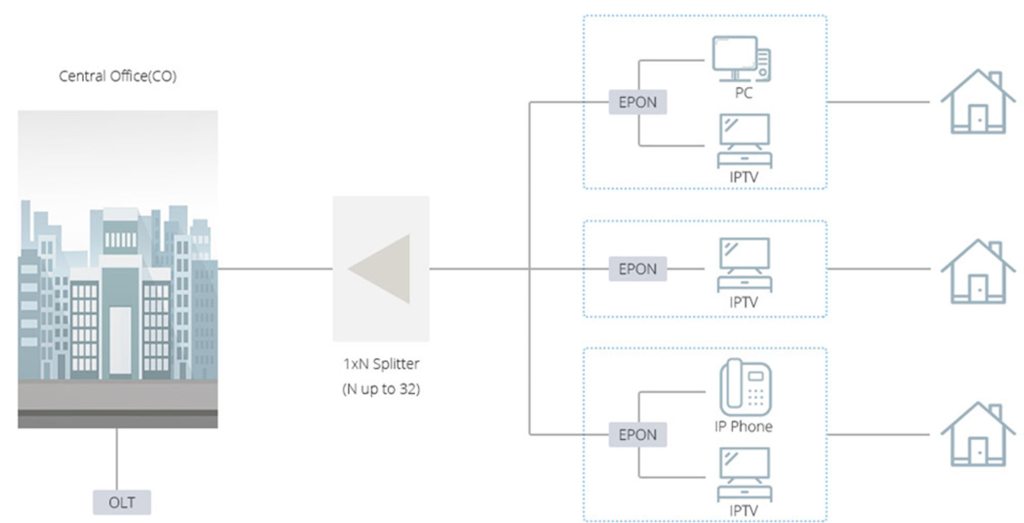

Application The bare PLC splitter can allow a single GPON network interface to be shared among many subscribers and allow service providers to enable bandwidth-intensive applications. The following figure shows 1X8 bare PLC fiber splitter interconnected with GPON OLT and ONT through fiber optic splice closure.

Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals,which gives carriers the ability to split optical signals to multiple homes or businesses.

Best Alternative for FTTx Solution

Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.

Looking for ideal 1U / 2U PLC Splitter Singlemode Manufacturer & supplier ?

CFO have a wide selection at good prices to help you get creative. All the 1U / 2U PLC Splitter Singlemode Type LGX Module are quality guaranteed. We are China Origin Factory of 1U / 2U Slide – out Rack Mount PLC Splitter Singlemode Type LGX Module. If you have any question, please feel free to contact us.

CFO is one of the leading China manufacturers and suppliers providing you with Rack Mount PLC Splitter LGX Module Chassis Cassette. Our factory has applied the most advanced equipment and technology to better serve you.

Contact our professional consultants today.
