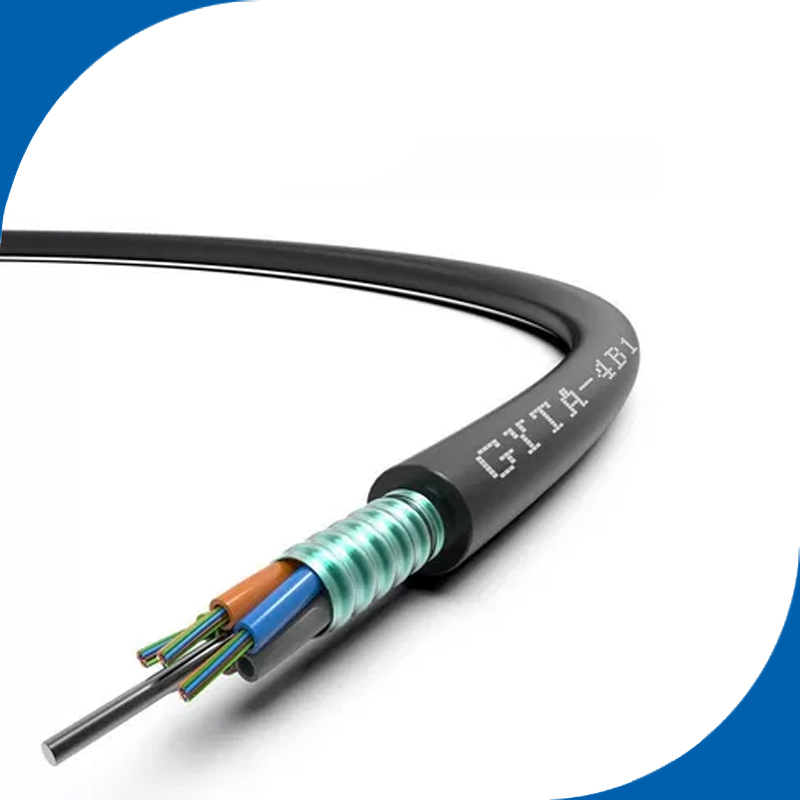

144 Cores GYTA Aluminum Jacket Fiber Optic Cable

144 Cores GYTA fiber optic cable is used for duct or aerial applications suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance

Tags: Aerial fiber cable, Aerial fiber optic cable, aluminum tape armored cables GYT, Armored Fiber Optic Cable, bulk fiber optic cable, Duct fiber cable, Duct fiber optic cable, fiber moisture resistance, Fiber Optic Cable, Fiber Optic Cable GYTA, fiber optic cable wholesale, GYTA, GYTA cable, GYTA fiber, GYTA Fiber Optic Cable, moisture resistance, moisture resistance cable, moisture resistance fiber optic, moisture resistance GYTA, wholesale fiber optic

What is 144 Cores GYTA Aluminum Jacket Stranded Loose Tube Light Armored Cable Fiber Optic Cable (Aerial and Duct) ?
144 Cores GYTA fiber optic cable is used for duct or aerial applications

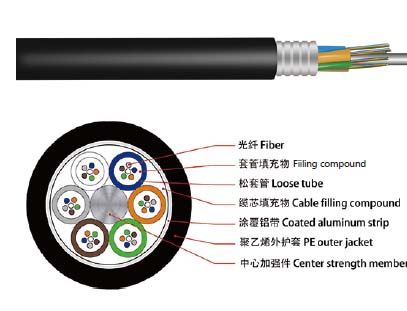

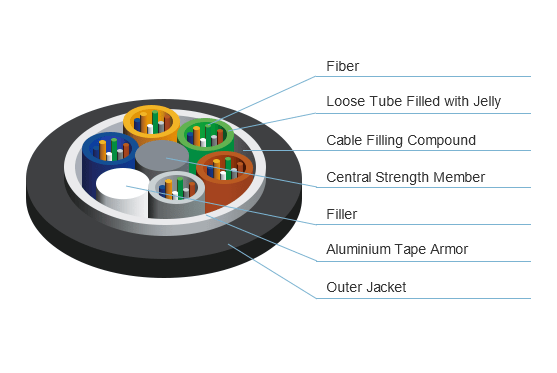

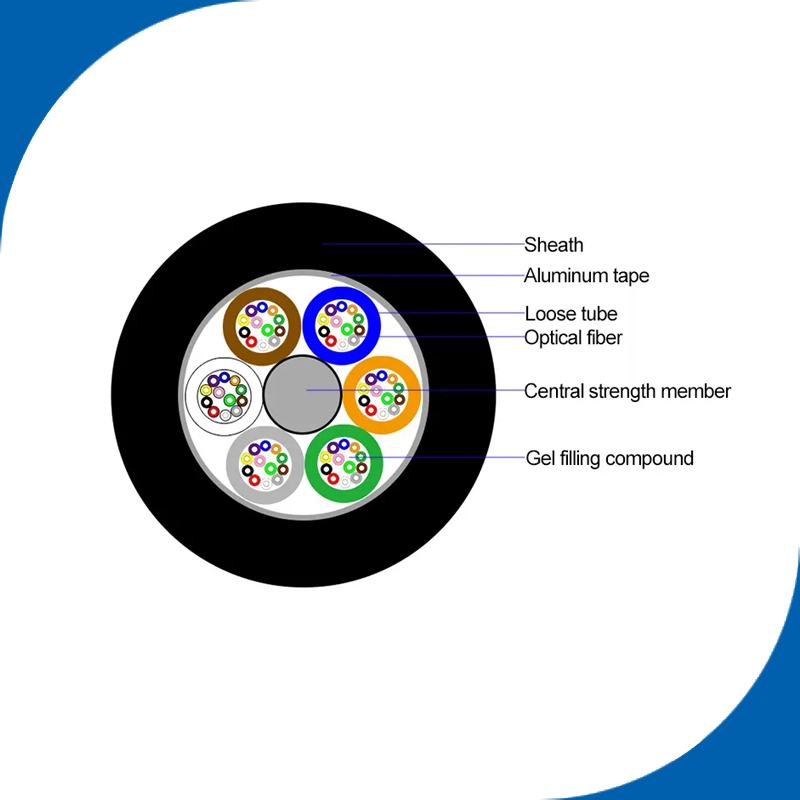

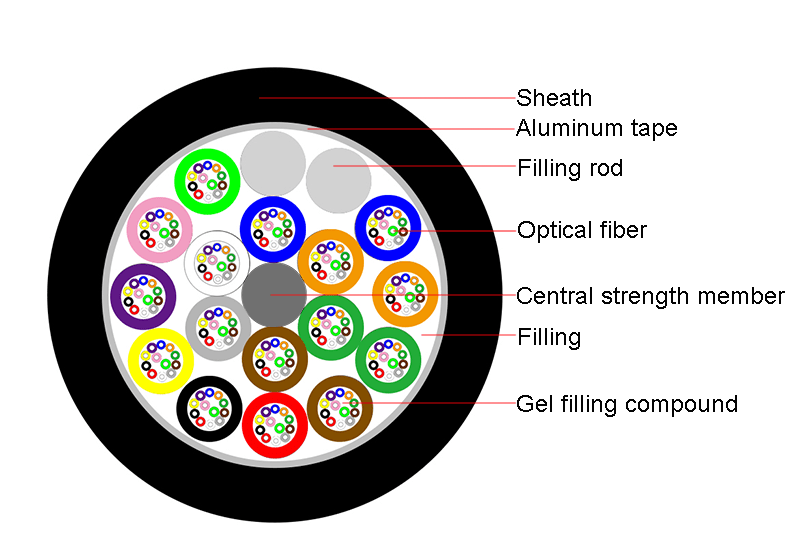

144 Cores GYTA Aluminum Jacket Stranded Loose Tube Light Armored Cable Fiber Optic Cable (Aerial and Duct) These aluminum tape armored cables GYTA are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.GYTA is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene. This fiber optic cable features the good mechanical and temperature performance. GYTA is with high strength loose tube that is hydrolysis resistant and the optical cable filling materials ensure high reliability, its APL makes the cable crush resistant and moisture proof.The GYTA fiber optic cable is available from 2 cores to 144 cores.

144 Cores GYTA fiber optic cable Features:
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Aluminum-PE jacket make cable have nice properties of moisture resistance
With small cable diameter, light cable weight, easily to lay
The jacket also can be made of HFFR, which cable model is GYTZA
Operating Temperature : -40 ~ +60 C
G652D SM fiber, detailed specification on your request.

Aluminum jacket offers high tension and crush resistance
Special gel in the tube offers critical protection for the fibers
With steel central strength member
PE jacket itself prevents UV, and UV material can be added to perform much better
It’s available under high and low temperatures and anti-aging

144 Cores GYTA fiber optic cable Applications:
Laying modes: Aerial & Conduit
Long-distance communication, local trunk line, CATV & computer networks system

Package and Shipping Mark of fiber optic cable:
Printing at outer Jacket of fiber optic cable
White Color Printing Words at each meter distance, Standard Printing Content as following, also can match the customer.
-Meter Marker
-Style of optical and number of fiber
-Manufacturer name
-Manufacture data

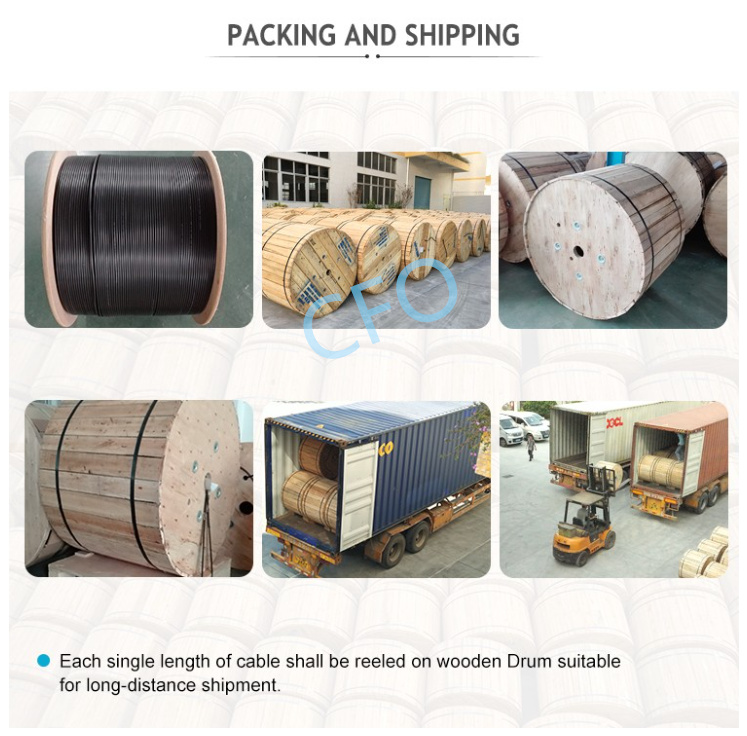

Package of fiber optic cable
-Standard length is 2KM, other length can negotiate
-Can be packed in wooden drum or plywood drum
-The end face of fiber optic cable will using plastic cap or adhesive tape sealed as water-proof
-Using batten totally sealed and fixed by steel tape
-The end of fiber optic cable will be fixed into the wooden drum in order to prevent the lost during transportation process.

Wooden drum
Label will be sticked at wooden drum, content as following
-Style of optical cable and fiber account
-Length
-Gross weight KGS
-Total drums amount
-Manufacture Date

The following information also will be exposed at the wooden drum
-Rolling direction
-Optical Cable rolling tightly with wooden drum,in order to prevent it will be broken during transportation process

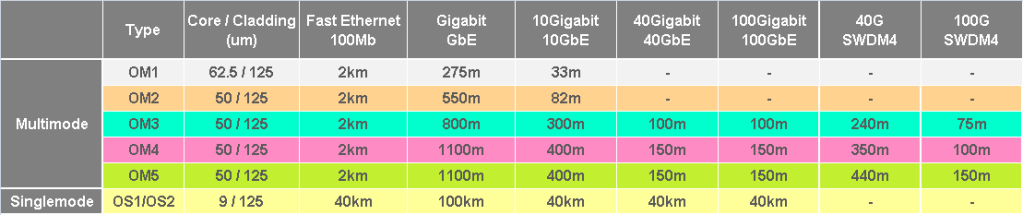

Fiber Optic Cable Transmission Distances

Note.

1 .Flooding jelly compound default

2.The relevant technical parameters can be adjusted according to the customers’ demands;
3.The block water way can be adjusted according to the customers’ demands,

4.The design flame resistance,anti-rodent,termite resistant cable according to the customers’demands

How to Ensure the Quality and Performance of Your Fiber Optic Cable?

We conrol the product quality from the raw maielal to the finish porduts. All the raw maielal shoud be tesied to match the Rosh standard when they arrived at our manuafacture. We contothe qualty duning the producing process by advanced techmolgy and equipments. We test the finished products according to he test standard. Approved by various proffesional opical and communication product institution. We also conduct various in-house testing in is own laboratary and test Center. we also conduct test with spcial arrangement with the chinese Government Ministry of QualityS upervision & Inspection Center of Optical Communication Products(QSICO).

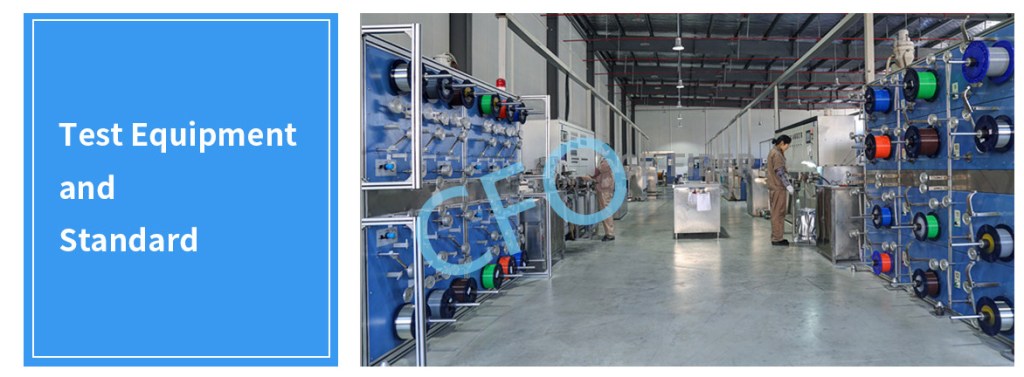

Quality Control . Test Equipment and Standard:

Feedback: In order to meet the world’s highest quality standards,
we continuously monitor feedback from our customers.
Forcomments and suggestions,please.contact us

Packaging Details :

2-5KM per roll. Packed by steel drum . Other packing available according to client’s Request.

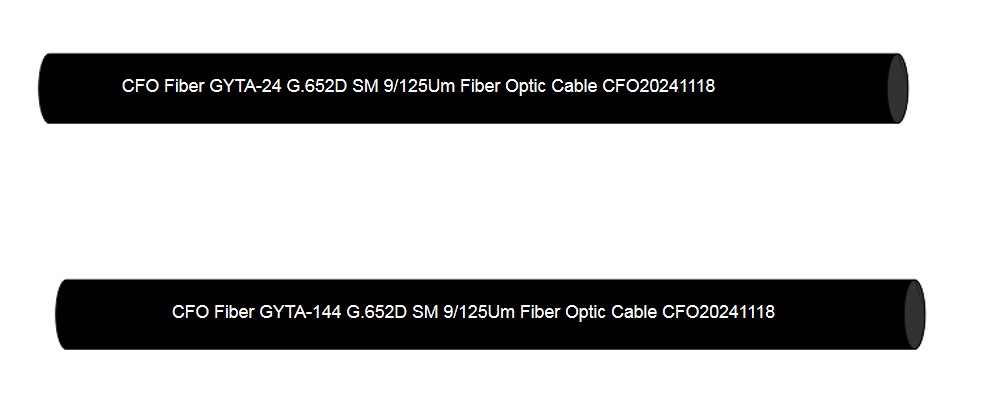

Sheath Mark:

The folowing printing(white hot folil indentations applied at 1 meter intenals.
a. Supplier. CFO or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count;
c. Year
of manufacture:7 years,
d. Length marking in meters.

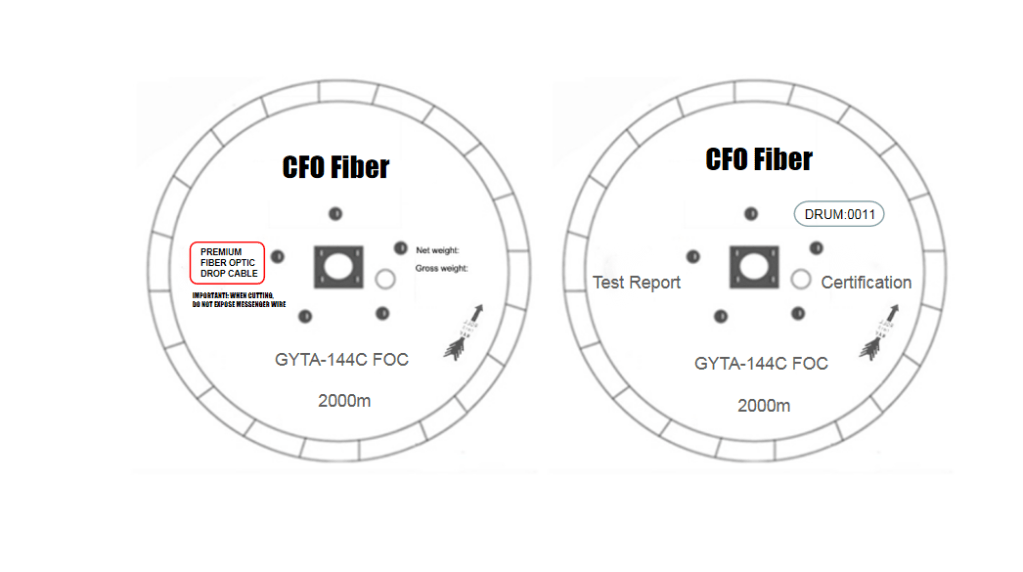

Drum Mark:

Port :

Shanghai/Guanazhou/Shenzhen

Lead Time :
1). 2-300KM: 15days
2). ≥300KM:To be negotiated!

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment

The cables are coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be
protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing. protected from mechanical stress and damage.

Drum for indoor Fiber Optic cable light weight cables 2Km

Drum for outdoor Fiber optic cable heavy weight cables 2Km

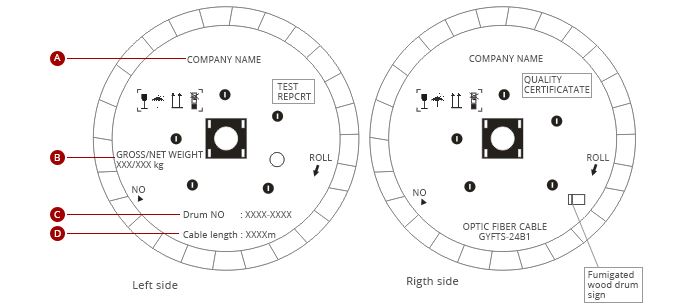

Cable Drum Information and marking

CFO is one of the leading China manufacturers and suppliers providing you with GYTA Aluminum Jacket Fiber Optic Cable. Our factory has applied the most advanced equipment and technology to better serve you.

Contact our professional consultants today.
