Tight Buffered Fiber production line for making 0.9mm cable

Tight Buffered Fiber production line insulating line applied to make tight buffer which the diameter is 0.6mm and 0.9mm. Cable insulation material can be LSZH, PVC. Main feature: tight buffer producing line easy to operate,

Tags: 900um tight buffered fiber, Tight Buffered fiber, tight buffered fiber cable, tight buffered fiber manufacturer, tight buffered fiber manufacturers, tight buffered fiber manufacturing, tight buffered fiber optic

Tight Buffered Fiber production line for making 0.9mm cable
Tight buffer insulating line applied to make tight buffer which the diameter is 0.6mm and 0.9mm. Cable insulation material can be LSZH, PVC.
Main feature: tight buffer producing line easy to operate, The equipment adopts industrial computer and programmable logic control (that is IPC+PLC mode) to realize the line’s synchronal running and the independent operation. Each type cable production data can be record.

Optic fiber cable to make:

Tight buffer production line:

Number of optical fiber Pay-off 2 spools
Optical fiber pay-off tension 0.3-1.5N±0.05N
Optical fiber reel size φ236×108mm×φ160
φ236×236mm×φ160
Structure speed 350m/min
Working speed ≦300m/min

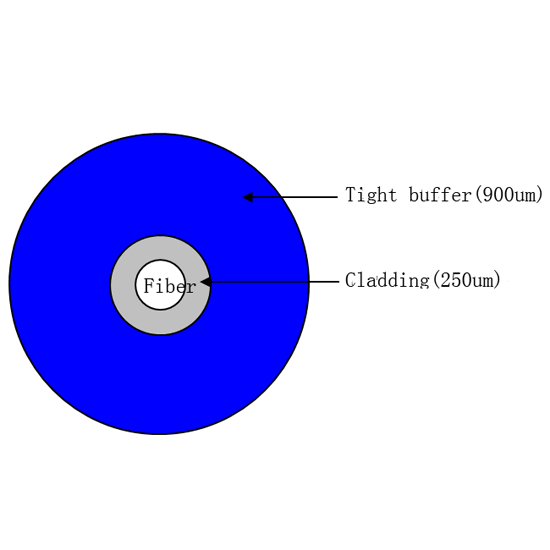

Tight buffer fiber dia 0.6mm, 0.9mm
Extruded material PVC, LSZH
Extra-attenuation ≤0.02dB/km(1310nm, 1550nm)
Metering accuracy ≤0.2%
Installed power 28KVA
Real power consumption 19KW/H
Operation direction Appointed by user
Line color Appointed by user
Line dimension 23m×3m×3m

Tight buffer making line elevation

Our Advantage:

1. 24 hours on-line service, if the machine you order have some problem, you can contact us in time.

2.20 years experience in cable production line field, well knowledge in different kind of cable, we can provide long time (3-6 months) training for different type cable making method.

3.High quality cable equipment but with competive price.

4.Cable extruder machine delivery on time.

5.Wish long-term relationship and mutual benefit with our customer.

Technical parameters:

Machine Type 35/26D
Specification optical fiber pay off reels Φ236 Φ160108Φ25.4mm Φ236Φ160225Φ25.4mm
Pay off tension 0.4N~1.5N±0.05N
Fiber diameter Φ0.25mm
Tight fiber diameter Ф0.6mm/Ф0.9mm
Design speed 300m/min
Actual speed ≤250m/min
Line length 21m
Take up tension 0.5N~3N(adjustable)

Machine main electric brand:
Motor: Siemens (China) Motor
Transducer: American Emerson transducer
Temperature controller: Omron Brand PID Smart type
Man-Machine interface: 10.2-inch color
PLC and Control Module: Siemens
Screw and Barrel: Producedbyjinhu Company.
Bearing: Japan NSKorother same quality brand
Low voltage electrical parts: Adopts SIEMENS, OMRON, SCHNEIDER brands, etc.

CFO is one of the leading China manufacturers and suppliers providing you with Tight Buffered Fiber Optic Cable. Our factory has applied the most advanced equipment and technology to better serve you.

Contact our professional consultants today.
