144 Cores GYTS Fiber Optic Cable Stranded Steel Tape

144 Core GYTS Fiber Optic Cable is the outdoor fiber optic cable type used for duct and aerial applications. We supply single mode GYTS fiber optical cable and multimode GYTS fiber optic cable, fiber strand from 2 cores to 432 cores. A related GYTA type cable is available.

Tags: 144 core gyts fiber optic cable, 144 core gyts fiber optic cable color code, 144 core gyts fiber optic cable cost, 144 core gyts fiber optic cable diameter, 144 core gyts fiber optic cable price, Aerial fiber optic cable, armord fiber, armord fiber optic, armord fiber optic Cable, Armored Fiber Optic Cable, bulk fiber optic cable, Central Strength member Fiber Optic Cable, Corrugated steel fiber, Duct fiber optic cable, Fiber Optic Cable, Fiber Optic Cable GYTS, fiber optic cable wholesale, GYTS, GYTS cable, GYTS fiber, GYTS Fiber Optic Cable, GYTS Outdoor, loose tube fiber optic cable, outdoor fiber optic cable, wholesale fiber optic

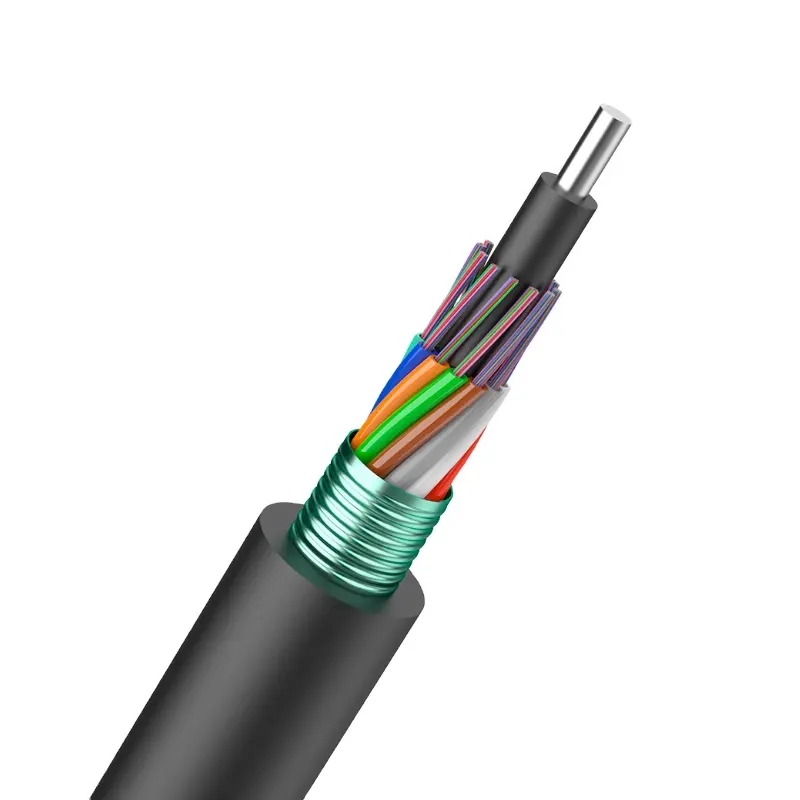

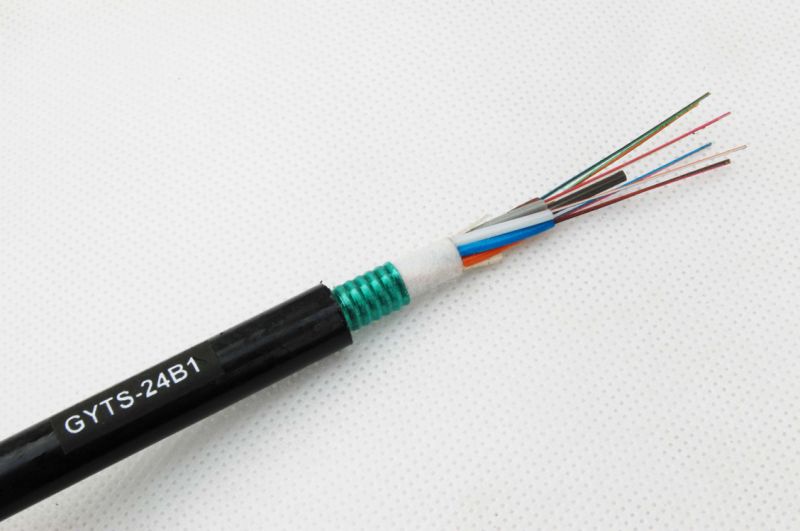

What Is 144 Cores GYTS Fiber Optic Cable Stranded Steel Tape Cable?
144 Core GYTS Fiber Optic Cable Stranded Steel Tape Cable is the outdoor fiber optic cable type used for duct and aerial applications. We supply single mode GYTS fiber optical cable and multimode GYTS fiber optic cable, fiber strand from 2 cores to 432 cores. A related GYTA type cable is available.

Applications of 144 Cores GYTS Fiber Optic Cable
These corrugated steel tape armored cables are suitable for installation in aerial or duct environment for long haul communication, LAN

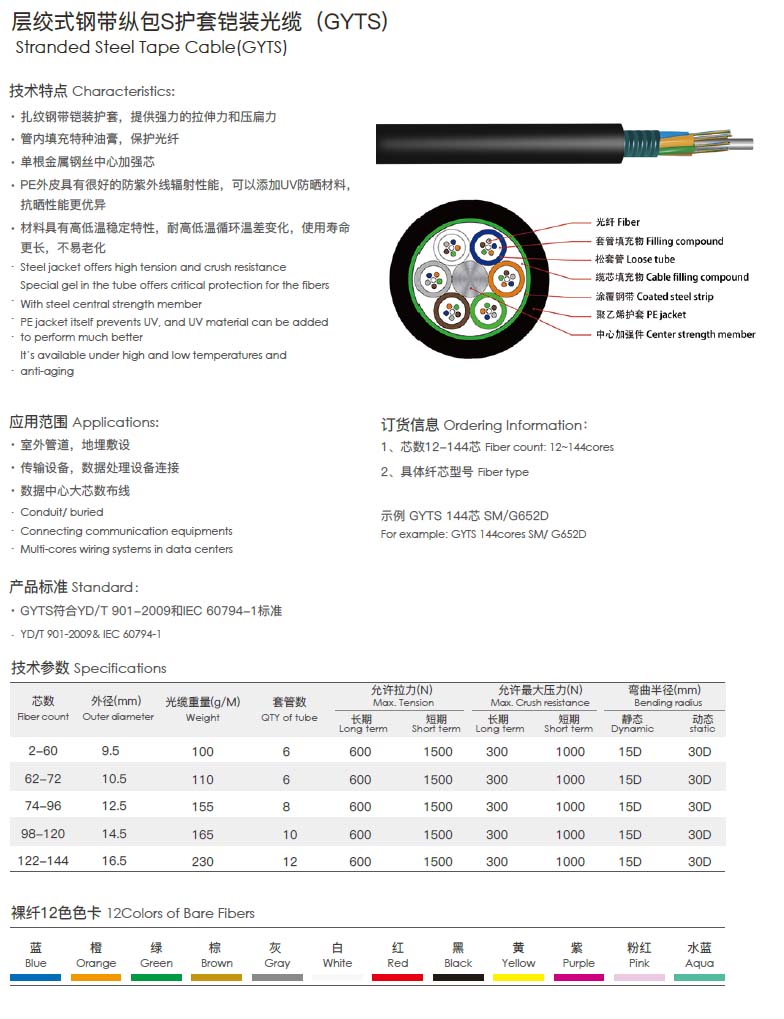

Description of a standard of 144 Cores GYTS Fiber Optic Cable

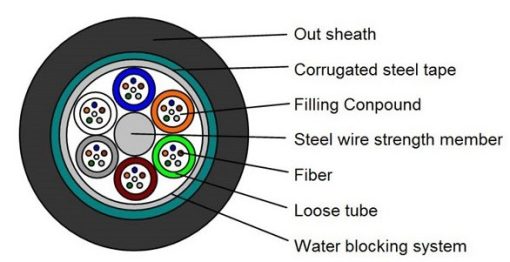

PBT loose tube of 2-12 fiber, Tube thickness: 0.3±0.05mm, Diameter: 2.1±0.1um, Fiber (Fiber characteristic), Cladding diameter: 125.0±0, Fiber characteristics: Diameter: 242±7 um, UV color fiber: Standard chromatogram. Central Strength member: steel wire with Diameter: 1.6mm. It has a Filling Compound; Longitudinal corrugated steel tape laminated with polyethylene on both sides. Consequently, it has a Corrugated steel Thickness: 0.4 ±0.015, Steel thickness: 0.15±0.015, Black MDPE out jacket, Jacket thickness: 1.8 ±0.20mm and Diameter: Cable Diameter: 10.5±0.20mm.

Features of 144 Cores GYTS Fiber Optic Cable:
1-Up to 144 fiber cores.
2-The loose tube stranding technology make the fibers have good secondary excess length and allow
3-The fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
4-Corrugated steel tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.
5-Metal strength member provides excellent strain performance.
6-Low dispersion and attenuation
7-Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
8-The armoring of corrugated steel tape make cable have nice properties of moisture resistance and crush resistance
9-With small cable diameter, light cable weight, easily to lay
10-The jacket also can be made of HFFR, which cable model is GYTZS
11-Operating Temperature : -40 ~ +60 C

What is Differences between GYTS optical cable and GYTA optical cable?
GYTS cable is universal optical cable; it can be used in aerial, duct and direct-buried while GYTA can be used in aerial cable and duct cable not in direct-buried cable.The S in GYTS refers to steel strip which can sustain large pulling force, the A in GYTA refers to Aluminum strip which has better anti-rust and moisture resistance than steel strip, therefore, GYTA cable has longer service life when used in duct transmission. Choose GYTS cable when tensile strength is needed.

Package and Shipping Mark of fiber optic cable:

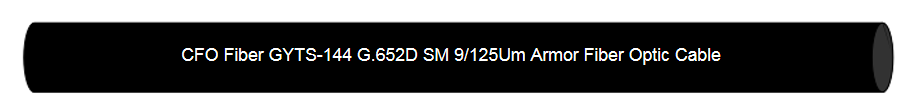

Printing at outer Jacket of fiber optic cable
White Color Printing Words at each meter distance, Standard Printing Content as following, also can match the customer.
-Meter Marker
-Style of optical and number of fiber
-Manufacturer name
-Manufacture data

Package of fiber optic cable

-Standard length is 2-5KM, other length can negotiate
-Can be packed in wooden drum or plywood drum
-The end face of fiber optic cable will using plastic cap or adhesive tape sealed as water-proof
-Using batten totally sealed and fixed by steel tape
-The end of fiber optic cable will be fixed into the wooden drum in order to prevent the lost during transportation process.

Wooden drum
Label will be sticked at wooden drum, content as following
-Style of optical cable and fiber account
-Length
-Gross weight KGS
-Total drums amount
-Manufacture Date

The following information also will be exposed at the wooden drum
-Rolling direction
-Optical Cable rolling tightly with wooden drum,in order to prevent it will be broken during transportation process

Note.

1 .Flooding jelly compound default

2.The relevant technical parameters can be adjusted according to the customers’ demands;
3.The block water way can be adjusted according to the customers’ demands,

4.The design flame resistance,anti-rodent,termite resistant cable according to the customers’demands

How to Ensure the Quality and Performance of Your Fiber Optic Cable?

We conrol the product quality from the raw maielal to the finish porduts. All the raw maielal shoud be tesied to match the Rosh standard when they arrived at our manuafacture. We contothe qualty duning the producing process by advanced techmolgy and equipments. We test the finished products according to he test standard. Approved by various proffesional opical and communication product institution. We also conduct various in-house testing in is own laboratary and test Center. we also conduct test with spcial arrangement with the chinese Government Ministry of QualityS upervision & Inspection Center of Optical Communication Products(QSICO).

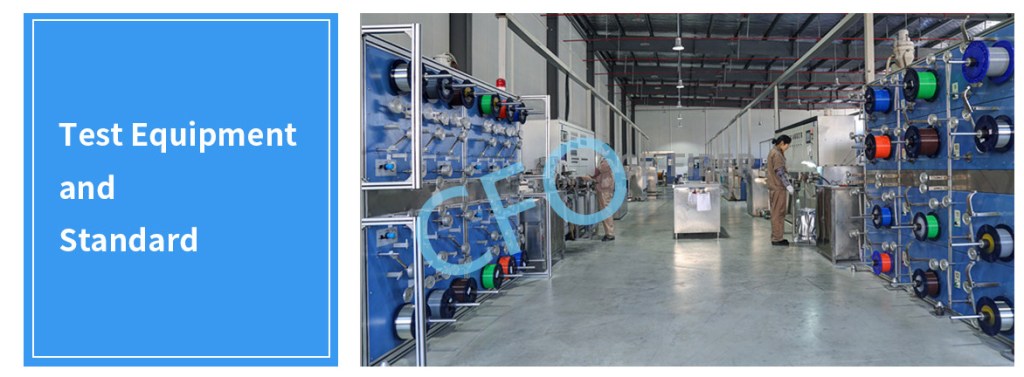

Quality Control . Test Equipment and Standard:

Feedback: In order to meet the world’s highest quality standards,
we continuously monitor feedback from our customers.
Forcomments and suggestions,please.contact us

Packaging Details :
2-5KM per roll. Packed by steel drum . Other packing available according to client’s Request.

Sheath Mark:

The folowing printing(white hot folil indentations applied at 1 meter intenals.
a. Supplier. CFO or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count;
c. Year
of manufacture:7 years,
d. Length marking in meters.

Drum Mark:

Port :

Shanghai/Guanazhou/Shenzhen

Lead Time :
1). 2-300KM: 15days
2). ≥300KM:To be negotiated!

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment

The cables are coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be
protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing. protected from mechanical stress and damage.

Fiber Optic Cable Transmission Distances

Drum for indoor Fiber Optic cable light weight cables 2Km

Drum for outdoor Fiber optic cable heavy weight cables 2Km

Cable Drum Information and marking
