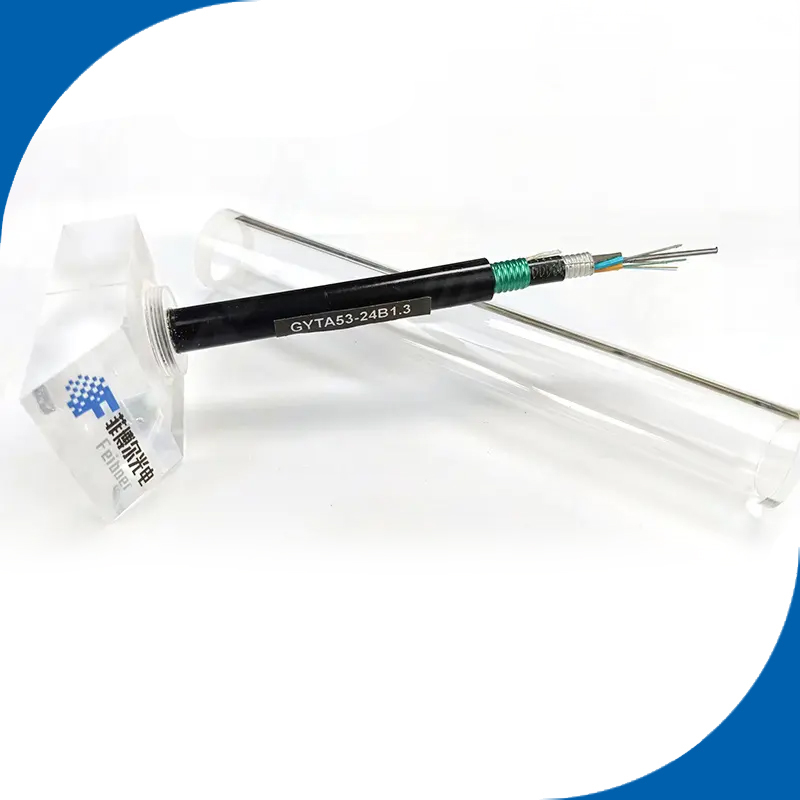

144 Cores GYTA53 Fiber Optic Cable Direct Buried
144 Cores GYTA53 fiber optic cable Double Armored & Double PE Sheathed is the steel tape armored outdoor fiber optic cable and gel-filled PBT loose tubes, and wrapped around a phosphatized steel wire central strength member used for direct buried. single mode GYTA53 fiber optic cable and multimode GYTA53 fiber optic cables; fiber counts from 2 to 432.
Tags: armord fiber, armord fiber optic, armord fiber optic Cable, Armored Fiber Optic Cable, bulk fiber optic cable, Corrugated steel fiber, Fiber Optic Cable, Fiber Optic Cable GYTA53, GYTA53, GYTA53 cable, GYTA53 fiber, GYTA53 Fiber Optic Cable, jelly filled GYTA53, loose tube fiber optic cable
What is 144 Cores GYTA53 Fiber Optic Cable Direct Buried?
144 Cores GYTA53 fiber optic cable Double Armored & Double PE Sheathed is the steel tape armored outdoor fiber optic cable and gel-filled PBT loose tubes, and wrapped around a phosphatized steel wire central strength member used for direct buried. single mode GYTA53 fiber optic cable and multimode GYTA53 fiber optic cables; fiber counts from 2 to 432.
GYTA53 fiber cable consists of 250um fibers held in gel-filled PBT loose tubes, and wrapped around a phosphatized steel wire central strength member. A waterproof compound fills the loose tube, and the center of the cable core is a metal reinforced core. For some optical fiber cables, a layer of polyethylene (PE) needs to be extruded outside the metal-reinforced core. And the loose tube (and filler rope) twists around the central reinforcing core to form a compact and round cable core, and the water blocking fillers fill the gaps in the cable core. A polyethylene sheath wraps and extrudes into plastic-coated aluminum tape (APL) longitudinally to form a cable.

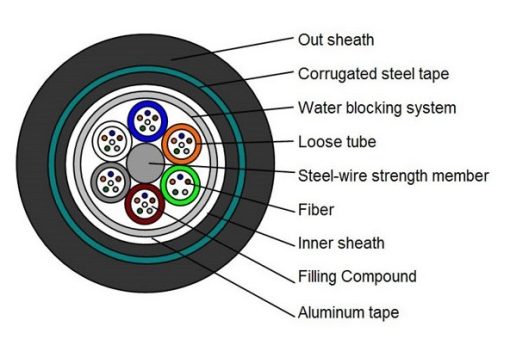

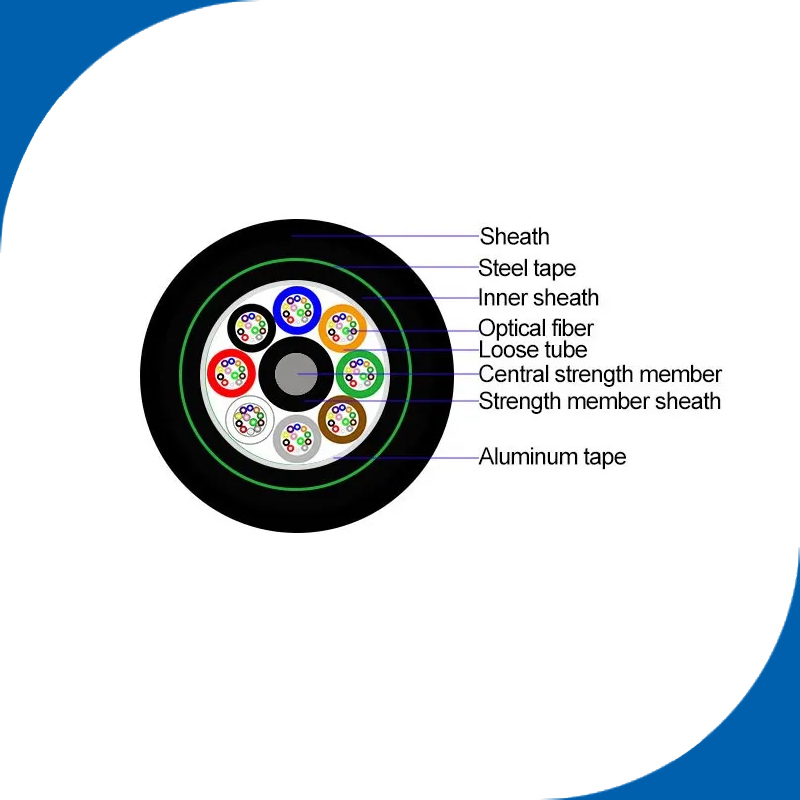

Structure:
GY——Outdoor optic communication cable
T——Filled structure
A——Aluminum-polyethylene bonded sheath (referred to as A sheath)
5——Wrinkled steel belt
3——Polyethylene protective sleeve
The full name of fiber cable is optical fiber cable or optic fiber cable. They are made of pure quartz, and change into a very tiny thin wire by a special process. The diameter of the optical fiber is even thinner than the hair.
The characteristics of optical fiber are: fast transmission speed, long-distance, many contents, and are not subject to electromagnetic interference, not afraid of thunder and lightning, difficult to eavesdrop on the outside, non-conductive, and no trouble of grounding between devices.
144 Cores GYTA53 fiber optic cable Applications
These corrugated steel tape and aluminum tape armored and double sheath cables are suitable for installation in harsh environments where mechanical impact on the cable is to be expected.e.g. in direct buried application. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.
144 Cores GYTA53 fiber optic cable Features
Up to 432 fiber cores.
The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
Corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance.
Metal strength member provides excellent strain performance.

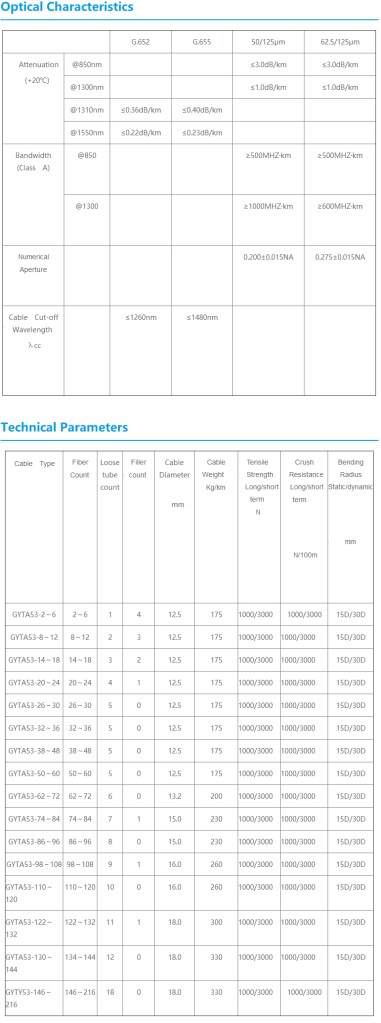

144 Cores GYTA53 fiber optic cable Description
- PBT loose tube of 24fibers
Tube number: 2 Tube thickness: 0.3±0.05mm Diameter: 2.1±0.1 um
Fiber (Fiber characteristic):
Cladding diameter: 125.0±0.1 Fiber characteristics: Diameter: 242±7 um
UV color fiber: Standard chromatogram - Filling Compound
- Central Strength member: steel wire Diameter: 1.6mm
- Filler rod: number: 3
- APL: Aluminum Polyethylene Laminate moisture barrier
- Black HDPE inner sheath
- Water-blocking tape
- PSP: Longitudinal corrugated steel tape laminated with polyethylene on both sides
Corrugated steel Thickness: 0.4 ±0.015 Steel thickness: 0.15±0.015 - PE outer sheath
Jacket thickness: 1.8 ±0.20mm
Diameter: Cable Diameter: 12.5±0.30mm
Outdoor GYTA53 Fiber Optic Cable with Corrugated Steel Armoured Tape
Application: Duct and Aerial, Direct Buried
Jacket: PE material
Usable in Duct or Aerial
Long-haul communication system
Junction communication system
Local area network systems
Outdoor GYTA53 Fiber Optic Cable with Corrugated Steel Armoured Tape
Fiber optic cable GYTA53, 2~432 fibers, central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath.
Fiber Optic Cable GYTA53 Features
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
Operating Temperature : -40 ~ +60 C

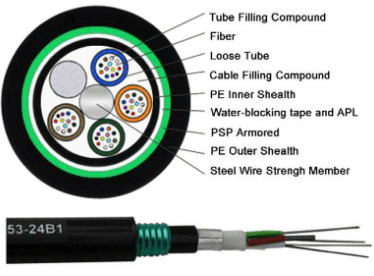

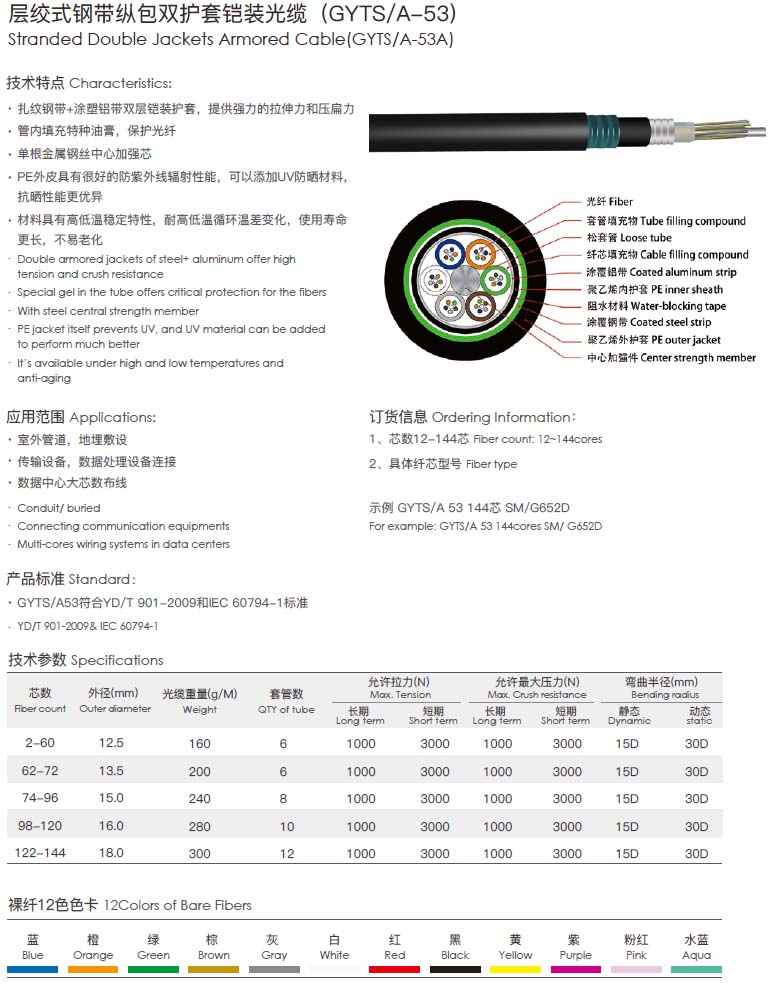

Structure of 144 Cores GYTA53 fiber optic cable
There are numerous features of the GYTA53 fiber optic cables and you can easily identify it in the market. However, the most identified characteristics include:
low dispersion and attenuation
properly designed with precise control for fiber excess length and distinct stranding process renders the cable excellent mechanical and environmental properties
The GYTA53 fiber optic cables are also characterized with Double-jacket structure make cable have nice properties of moisture resistance and crush resistance.
The GYTA53 fiber optic cables has a small cable diameter, light cable weight, easily to lay
It operates better under Temperature : -40 ~ +60 C
Applications of 144 Cores GYTA53 fiber optic cable
These corrugated steel tape and aluminum tape armored and double sheath cables are suitable for installation harsh environments where mechanical impact on the cable is to be expected, f or instance in direct buried application. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.
Fiber Optic Cable GYTA53 Applications:
♦ Laying modes: Direct Buried
♦ Long-distance communication, local trunk line, CATV & computer networks system
Conclusion
GYTA53 fiber optic cable is a durable type of fiber optic cable and that fact has enabled it to effectively penetrate in the market. Soon, GYTA53 fiber optic cable will be the market leader in the communication industry due to its fiable growing trend. Moreover, it has built its brand in areas that are subject to high pressure since its most suitable in those areas. This article therefore, analyses the fanatstic features and uses of GYTA53 fiber optic cable.
Fiber Optic Cable Transmission Distances
Note.
1 .Flooding jelly compound default
2.The relevant technical parameters can be adjusted according to the customers’ demands;
3.The block water way can be adjusted according to the customers’ demands,
4.The design flame resistance,anti-rodent,termite resistant cable according to the customers’demands
How to Ensure the Quality and Performance of Your Fiber Optic Cable?

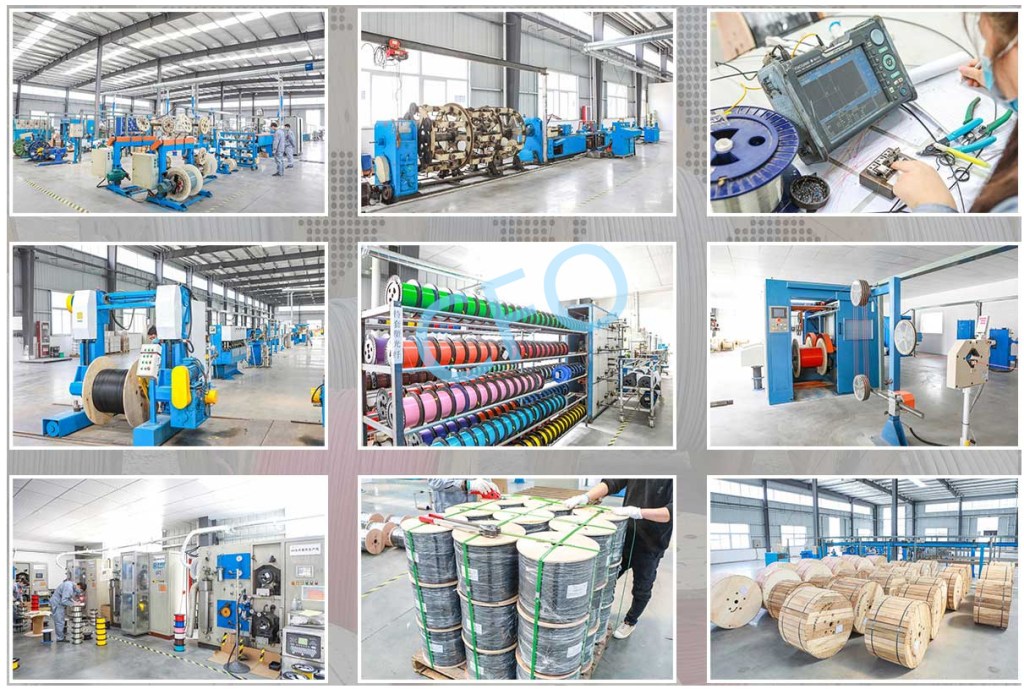

We conrol the product quality from the raw maielal to the finish porduts. All the raw maielal shoud be tesied to match the Rosh standard when they arrived at our manuafacture. We contothe qualty duning the producing process by advanced techmolgy and equipments. We test the finished products according to he test standard. Approved by various proffesional opical and communication product institution. We also conduct various in-house testing in is own laboratary and test Center. we also conduct test with spcial arrangement with the chinese Government Ministry of QualityS upervision & Inspection Center of Optical Communication Products(QSICO).

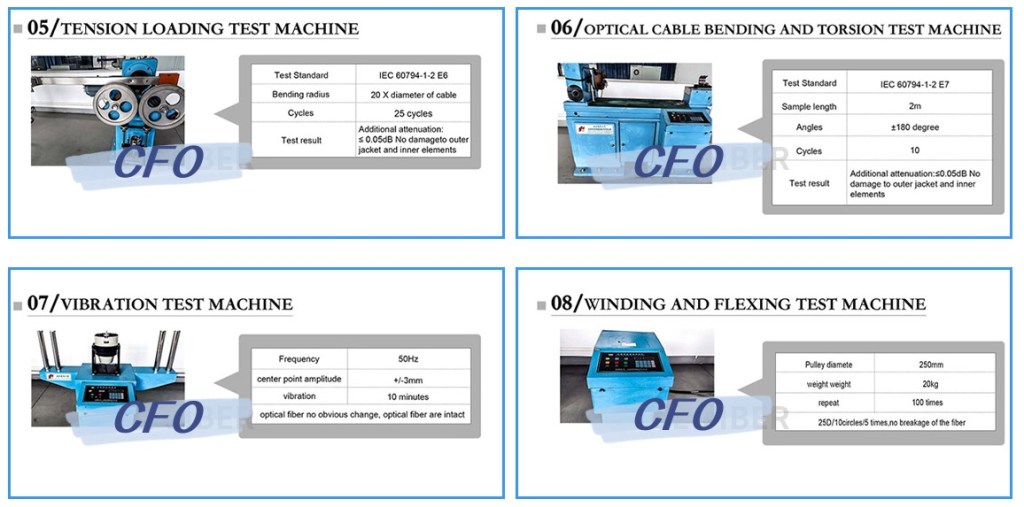

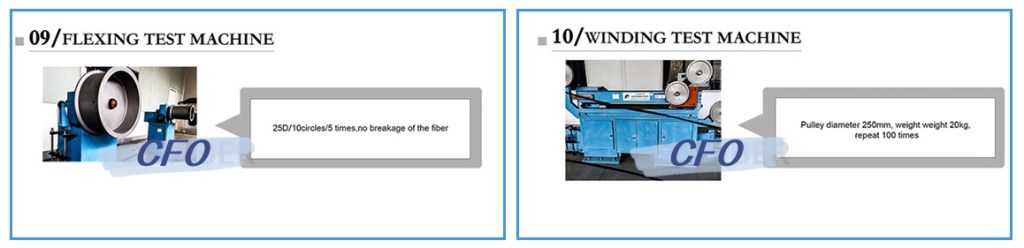

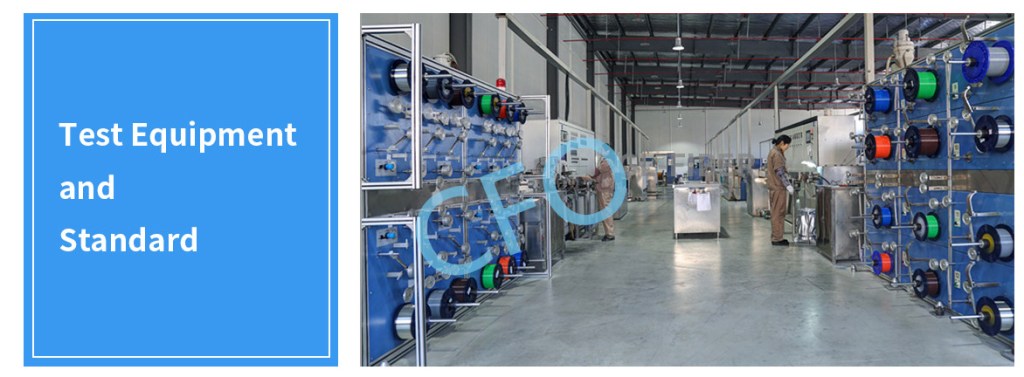

Quality Control . Test Equipment and Standard:
Feedback: In order to meet the world’s highest quality standards,
we continuously monitor feedback from our customers.
Forcomments and suggestions,please.contact us
Packaging Details :
2-5KM per roll. Packed by steel drum . Other packing available according to client’s Request.

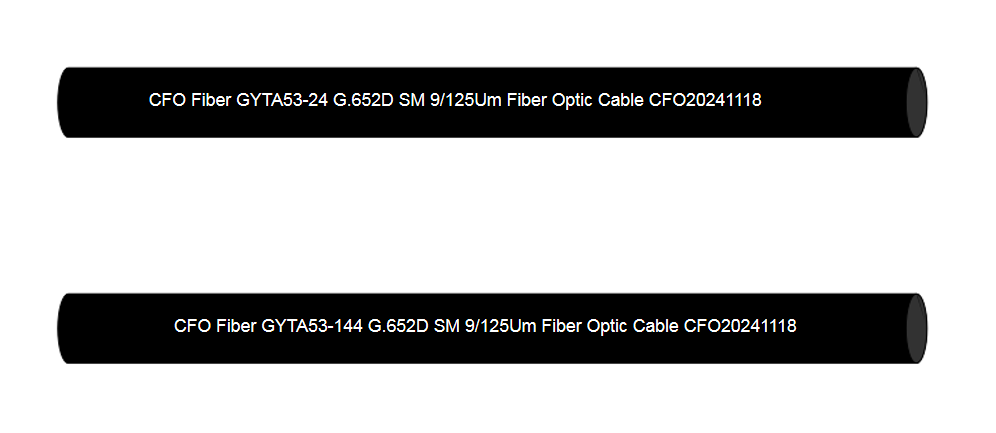

Sheath Mark:
The folowing printing(white hot folil indentations applied at 1 meter intenals.
a. Supplier. CFO or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count;
c. Year
of manufacture:7 years,
d. Length marking in meters.

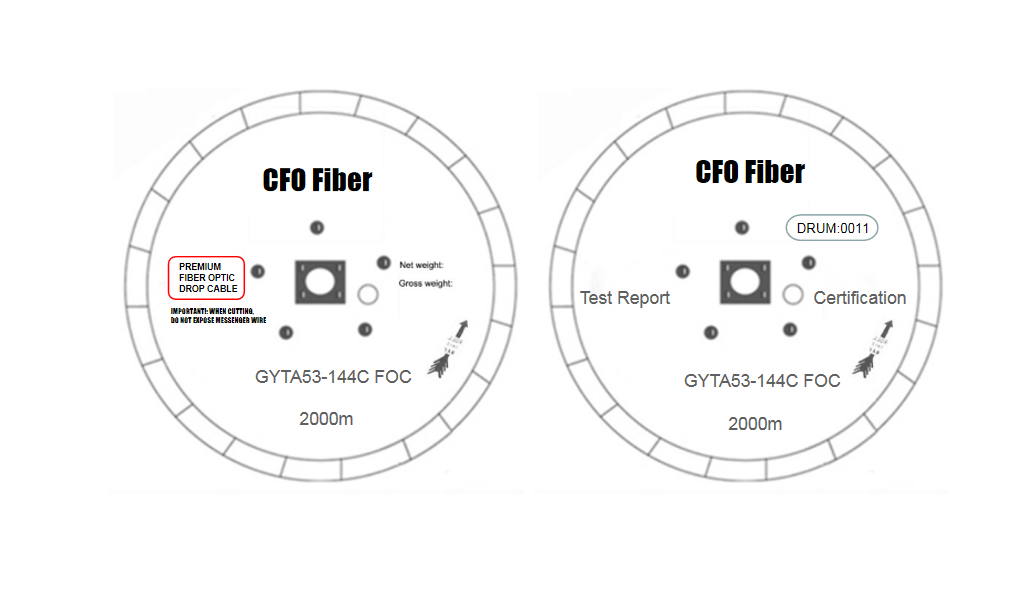

Drum Mark:
Port :
Shanghai/Guanazhou/Shenzhen
Lead Time :
1). 2-300KM: 15days
2). ≥300KM:To be negotiated!
Note:
The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment
The cables are coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be
protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing. protected from mechanical stress and damage.
Drum for indoor Fiber Optic cable light weight cables 2Km
Drum for outdoor Fiber optic cable heavy weight cables 2Km
Cable Drum Information and marking
CFO is one of the leading China manufacturers and suppliers providing you with 144 Cores GYTA53 Fiber Optic Cable Direct Buried. Our factory has applied the most advanced equipment and technology to better serve you.
