2-24 Core Unitube Light Armored Fiber Optic Cable GYXTW positioned between CO and first DP in FTTX network. Used as mainline cable which environment is in Buried ,Aerial, under earth Pipes, Poles etc.

Tags: Armored fiber, Armored Fiber Optic, Armored Fiber Optic Cable, armored fiber optic cable bend radius, armored fiber optic cable installation, armored fiber optic cable price, armored fiber optic cable single mode, armored fiber optic cable specifications

What Is Unitube Light Armored Fiber Optic Cable GYXTW ?
Unitube Light Armored Fiber Optic Cable GYXTW positioned between CO and first DP in FTTX network. Used as mainline cable which environment is in Buried ,Aerial, under earth Pipes, Poles etc.

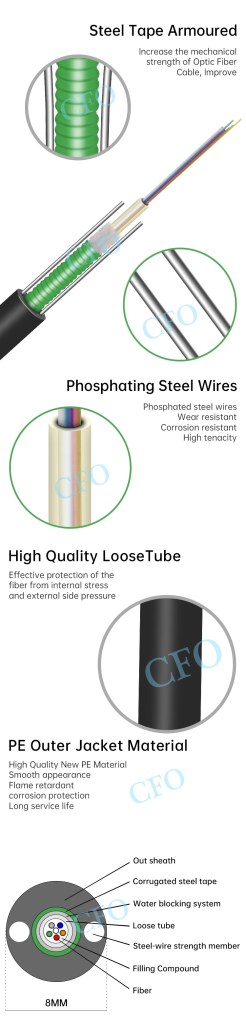

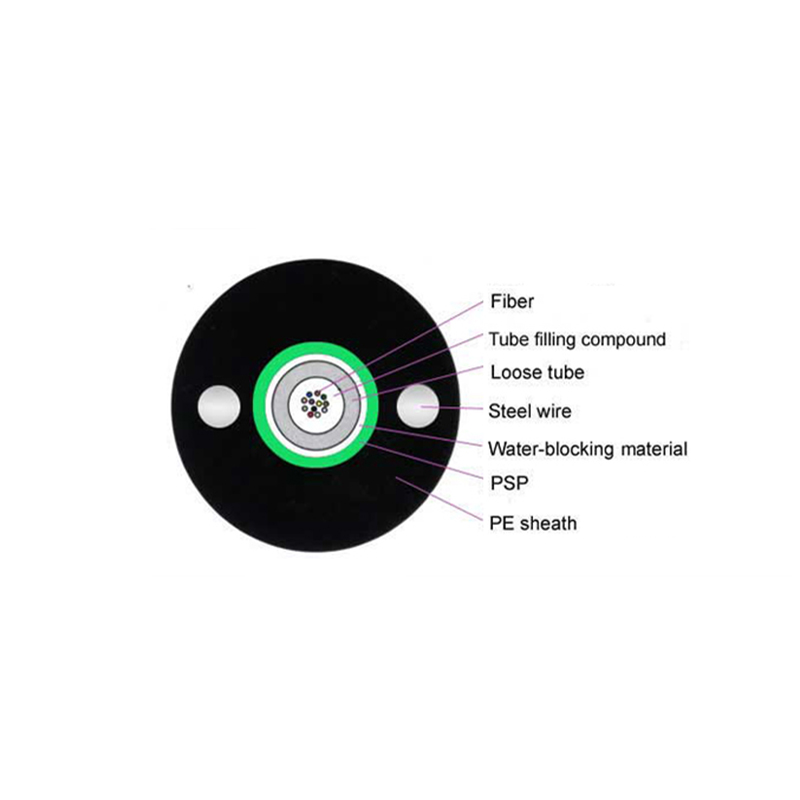

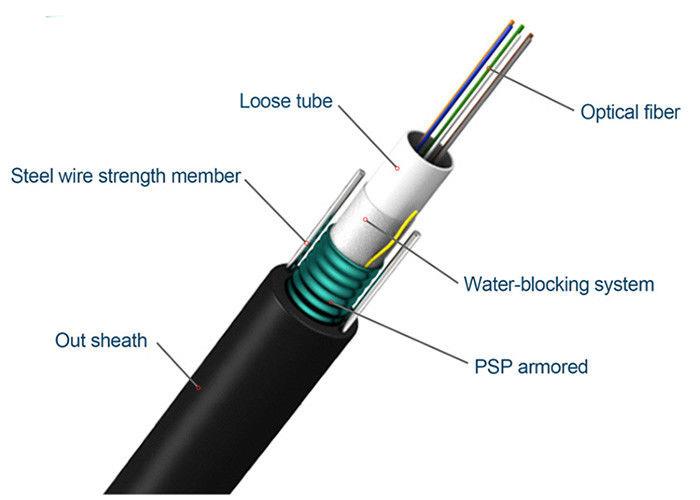

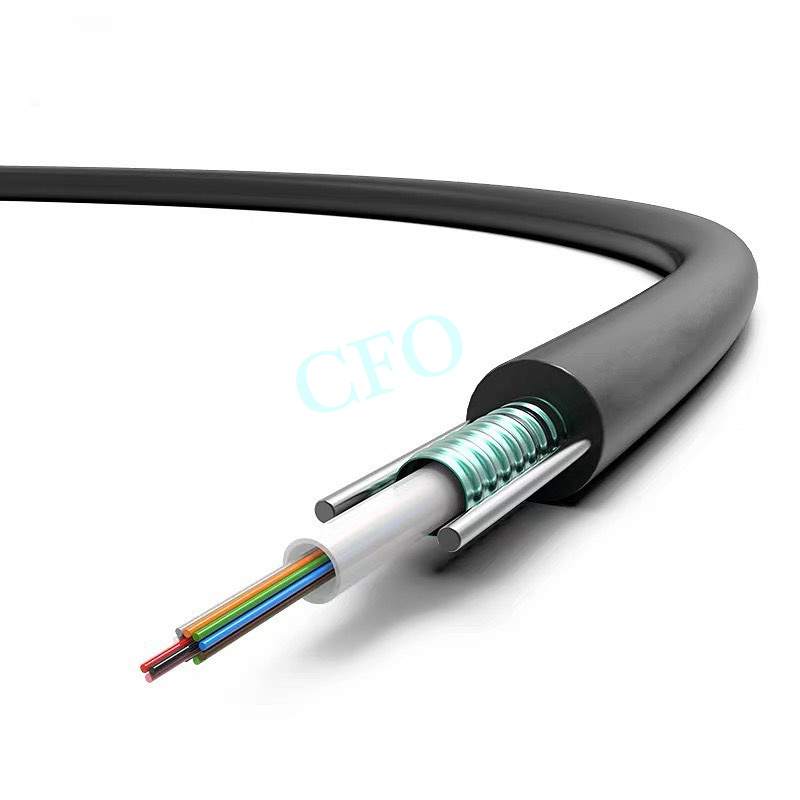

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

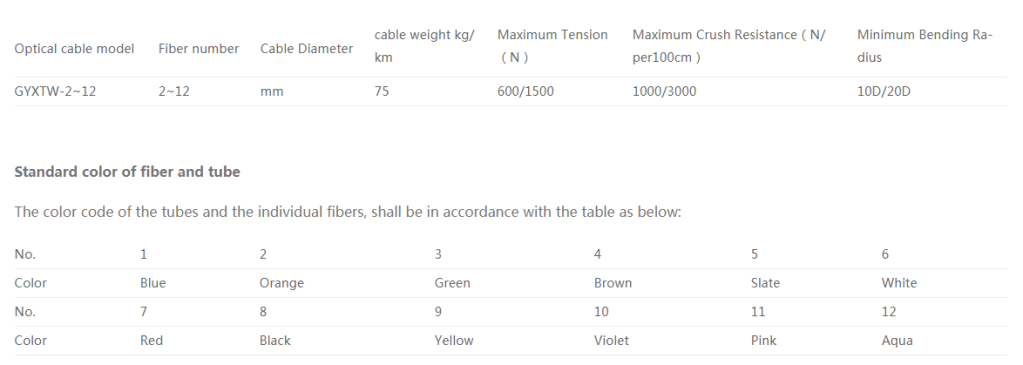

Product Detail:

Product Name : Unitube Light-armored Cable – GYXTW
Fibers Count : 2-24 Fibers
Cable Diameter(mm) : 8.0
Weight(Kg/km) : 75
Maximum Tension(N) : 600/1500

Characteristics:

1. High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
2. Good mechanical and temperature performance
3. High strength loose tube that is hydrolysis resistant
4. Special tube filling compound ensure a critical protection of fiber
5. The following measures are taken to ensure the cable watertight:
6. Steel wire used as the central strength member
7. Loose tube filling compound
8. 100% cable core filling

Package: Standard Reel Length: 2000m; OEM Package is available Once request.

ITU recommendation G.657 specifies two classes of single-mode bend insensitive fiber patch ca- bles: G.657 A and G.657 B. Each category (A and B) is then divided into two sub-categories: G.657.A1, G.657.A2 and G.657.B1, G.657.B2. The minimum bend radius of G.657.A1 fibers is 10 mm, of the G.657.A2 and G.657.B1 fibers is 7.5 mm and of the G.657.B2 fibers is 5 mm. Among, ITU-T G.657.A1 and ITU-T G.657.A2 fibers are fully compliant with ITU-T G.652.D fibers.

Note.

1 .Flooding jelly compound default

2.The relevant technical parameters can be adjusted according to the customers’ demands;
3.The block water way can be adjusted according to the customers’ demands,

4.The design flame resistance,anti-rodent,termite resistant cable according to the customers’demands

How to Ensure the Quality and Performance of Your Fiber Optic Cable?

We conrol the product quality from the raw maielal to the finish porduts. All the raw maielal shoud be tesied to match the Rosh standard when they arrived at our manuafacture. We contothe qualty duning the producing process by advanced techmolgy and equipments. We test the finished products according to he test standard. Approved by various proffesional opical and communication product institution. We also conduct various in-house testing in is own laboratary and test Center. we also conduct test with spcial arrangement with the chinese Government Ministry of QualityS upervision & Inspection Center of Optical Communication Products(QSICO).

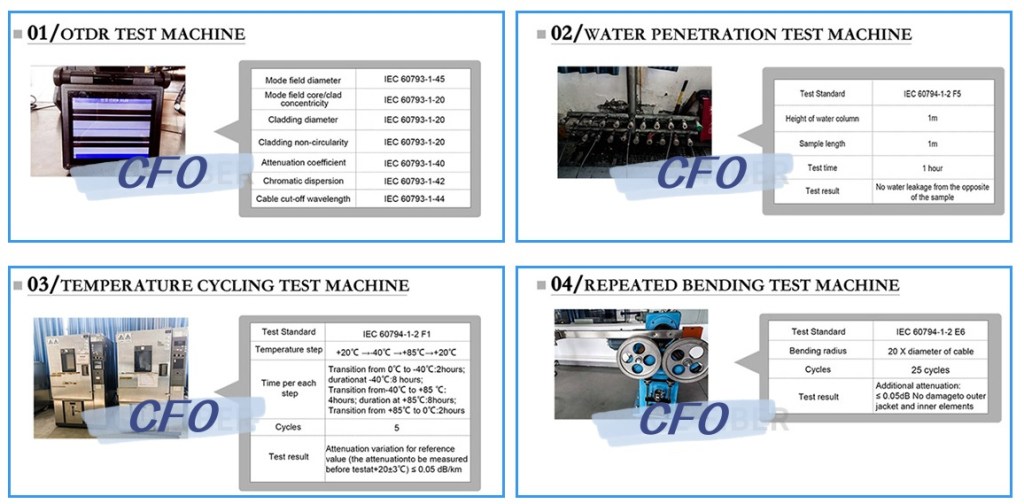

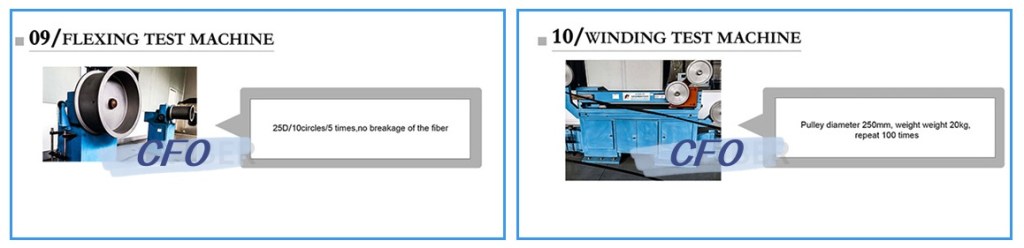

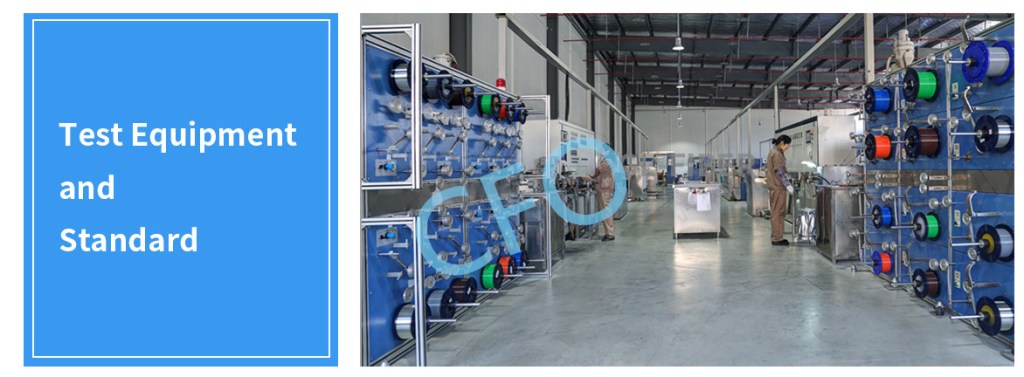

Quality Control . Test Equipment and Standard:

Feedback: In order to meet the world’s highest quality standards,
we continuously monitor feedback from our customers.
Forcomments and suggestions,please.contact us

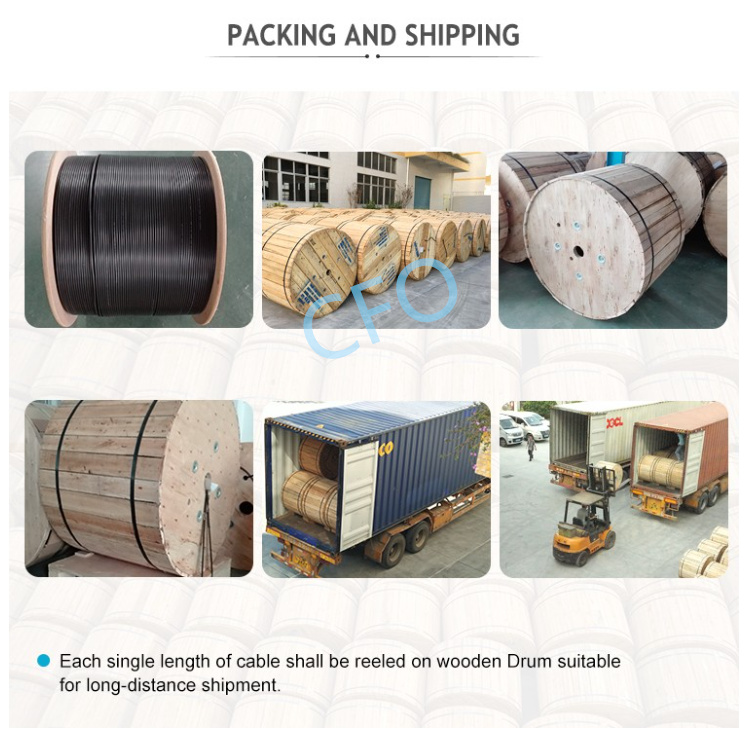

Packaging Details :
1-5KM per roll. Packed by steel drum . Other packing available according to client’s Request.

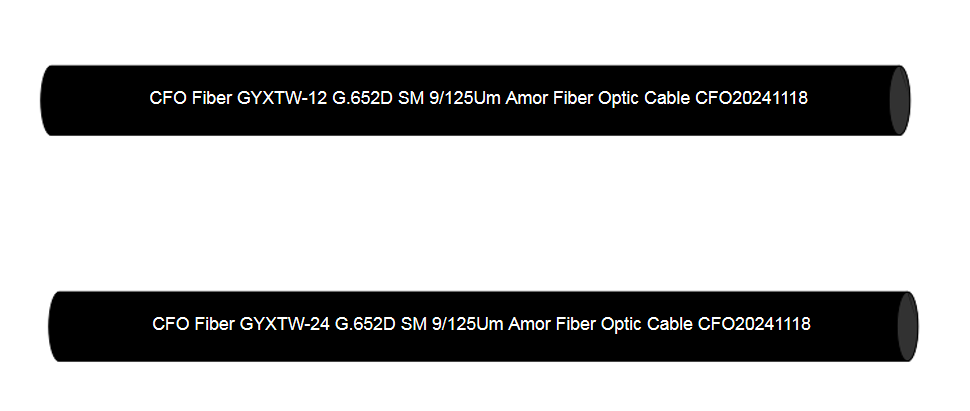

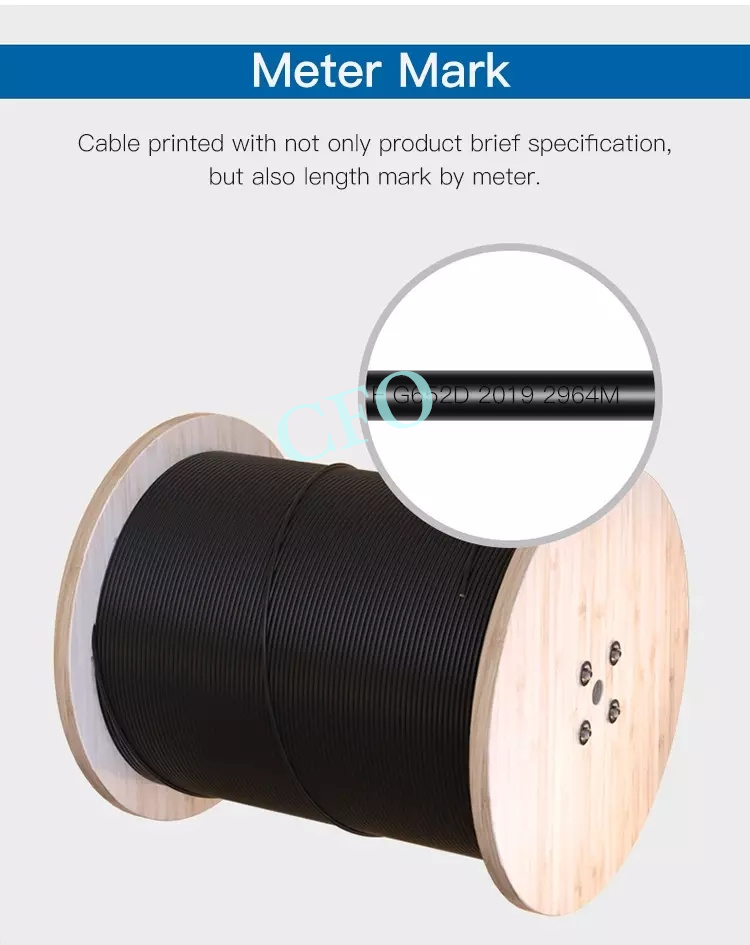

Sheath Mark:

The folowing printing(white hot folil indentations applied at 1 meter intenals.
a. Supplier. CFO or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count;
c. Year
of manufacture:7 years,
d. Length marking in meters.

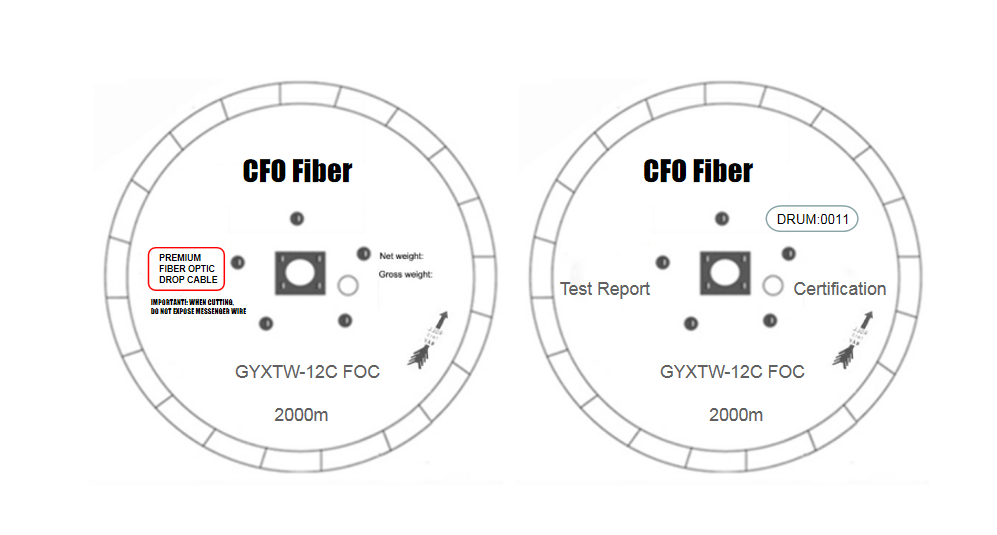

Drum Mark:

Port :

Shanghai/Guanazhou/Shenzhen

Lead Time :
1). 2-300KM: 15days
2). ≥300KM:To be negotiated!

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment

The cables are coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be
protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing. protected from mechanical stress and damage.

Looking for ideal Unitube Light Armored Cable GYXTW Manufacturer & supplier ? CFOm have a wide selection at good prices to help you get creative. All the Unitube Light Armored Cable GYXTW are quality guaranteed. We are China Origin Factory of Unitube Light Armored Cable GYXTW. If you have any question, please feel free to contact us.
