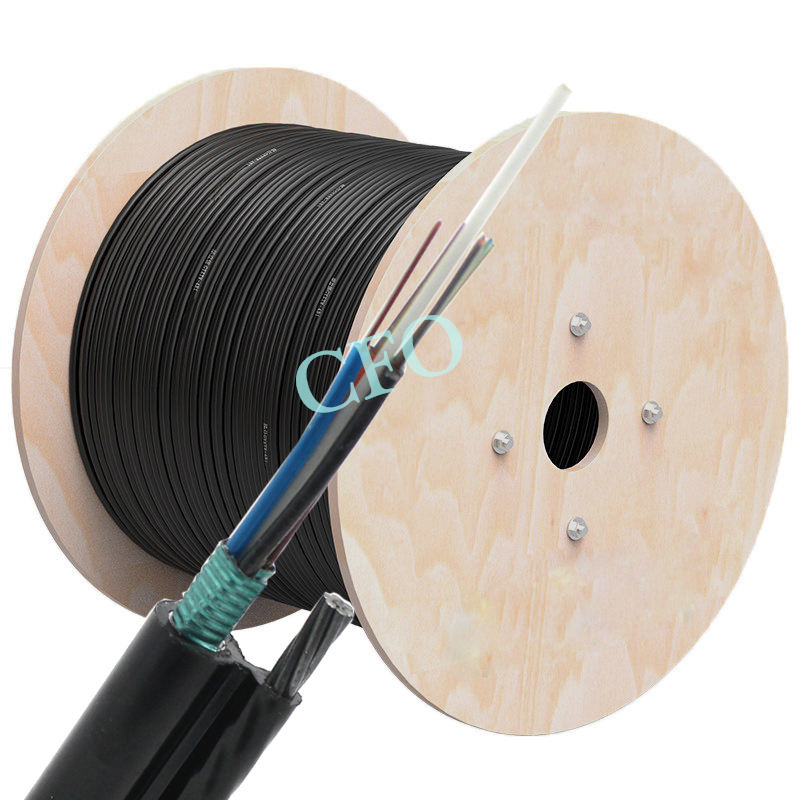

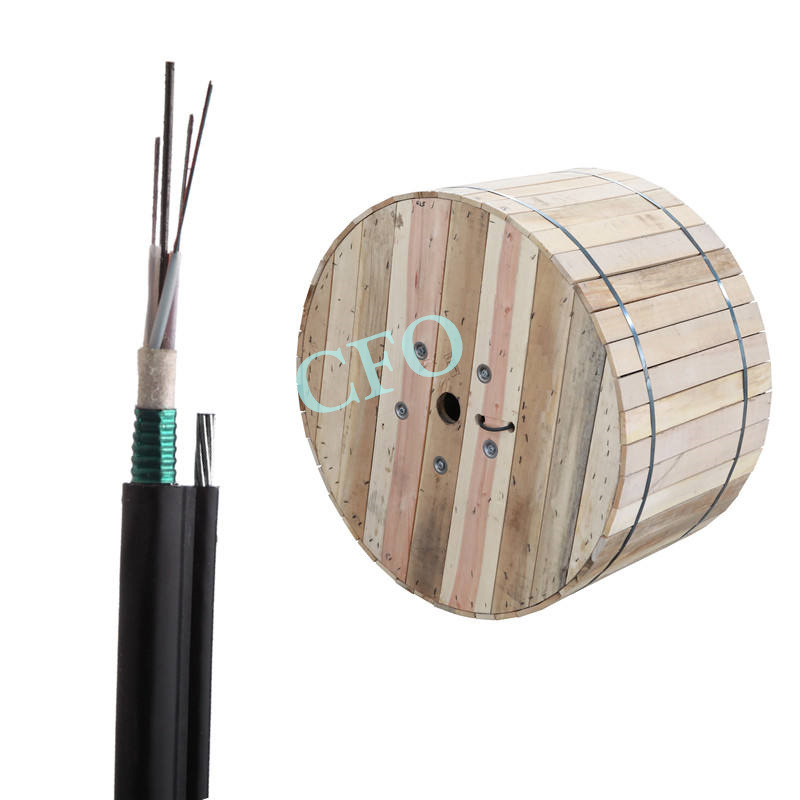

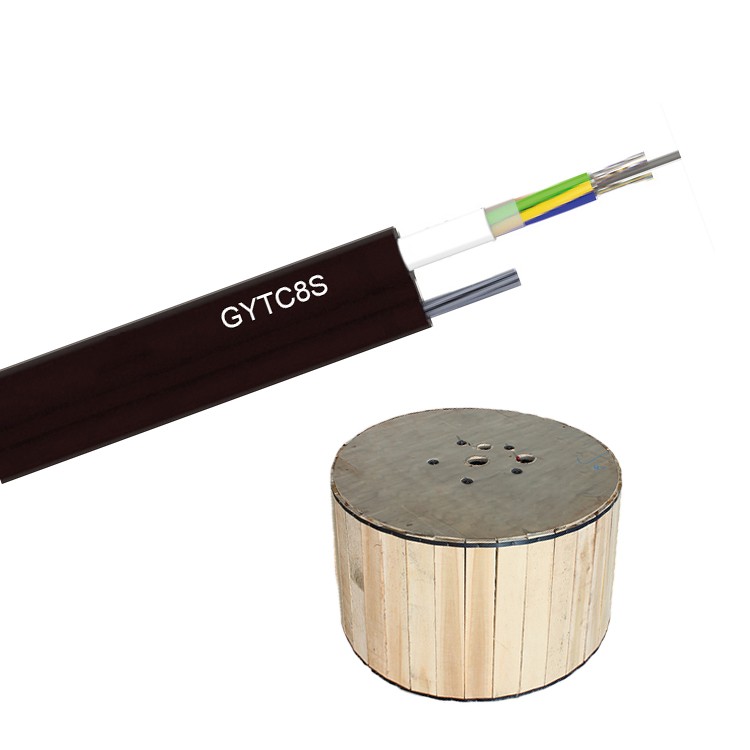

144 Core GYTC8S Figure-8 Fiber Optic Cable

144 Core GYTC8S Fiber Optic Cable Armor Stranded Loose Tube Steel Wire Strength Waterproof Figure 8 Self Supporting Outdoor GYTC8S is a typical self supporting outdoor fiber optic cable, suitable for aerial applications; The cable have nice moisture resistance performance and crush resistance performance suitable for duct and buried method.

Tags: bulk fiber optic cable, fiber optic cable Price, fiber optic cable types, fiber optic cable wholesale, fiber optic wholesale, fiber optics cable, optical fiber cable price, wholesale fiber optic cable

What Is 144 Core GYTC8S Fiber Optic Cable Armor Stranded Loose Tube Steel Wire Strength Waterproof Figure 8 Self Supporting Outdoor?

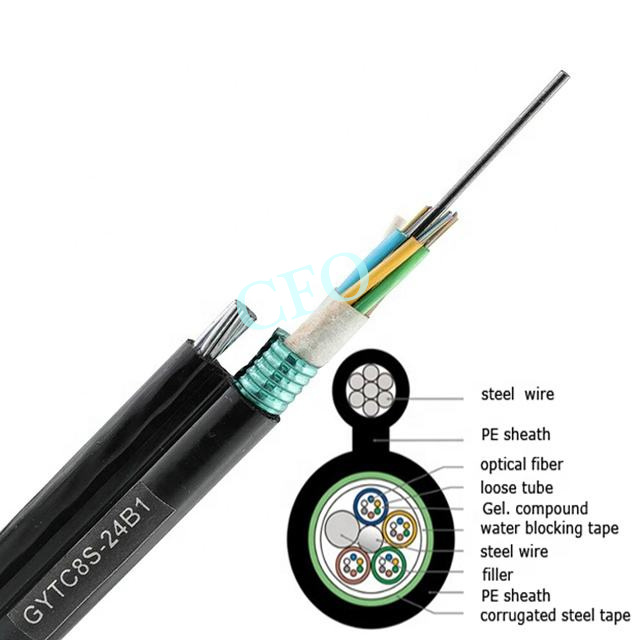

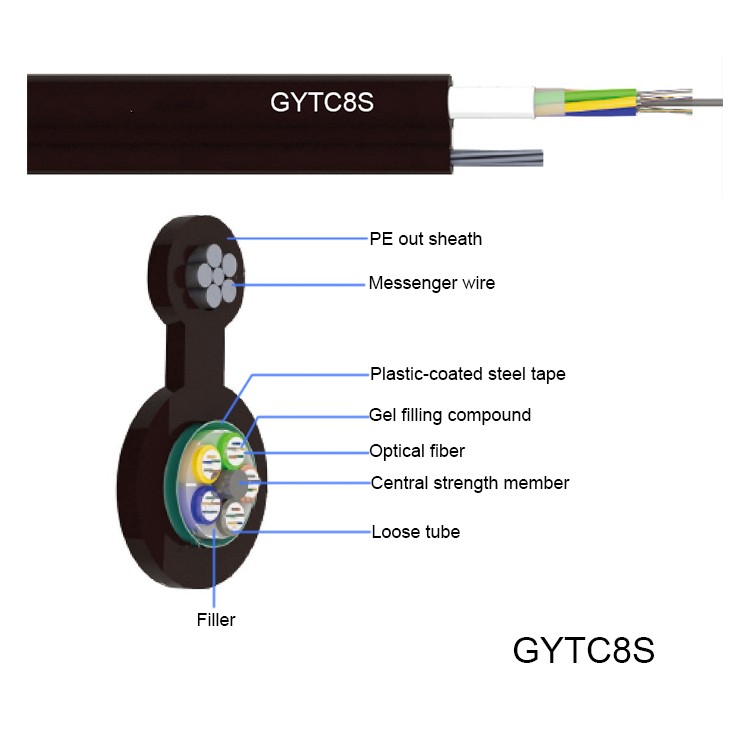

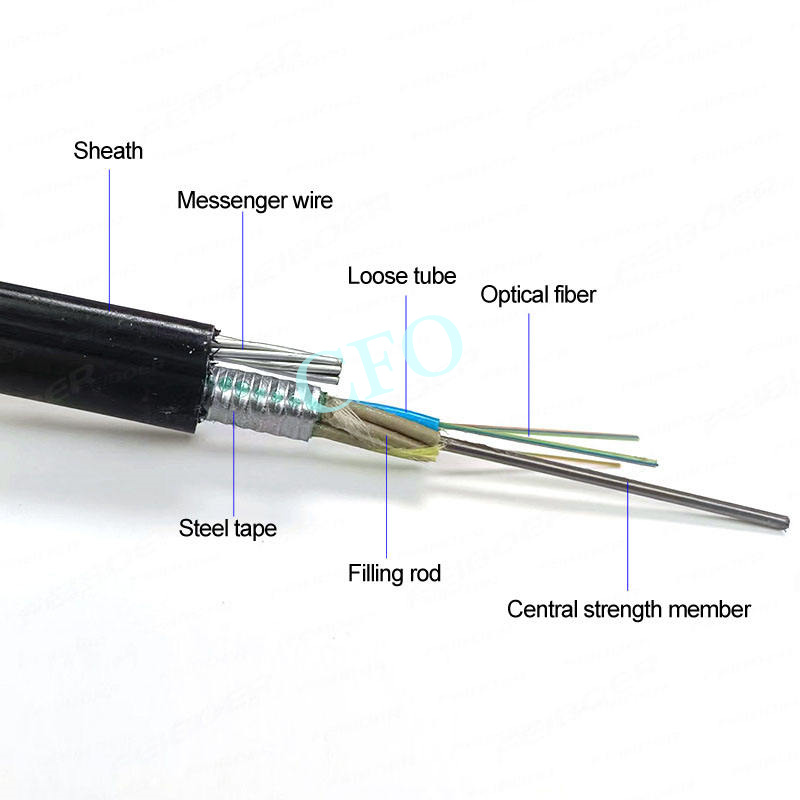

144 Core GYTC8S Fiber Optic Cable Armor Stranded Loose Tube Steel Wire Strength Waterproof Figure 8 Self Supporting Outdoor GYTC8S cable, single-mode/multimode fibers are positioned in the loose tubes, which are made of high modulus plastic, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a PSP moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure. This kind of cable is specifically used for self supporting aerial installation.

The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.

Fiber Type: OS2 9/125 G652D /OM1 62.5/125μm Multimode – OM2 50/125μm Multimode – 10G OM3 50/125μm Multimode – 10G OM4 50/125μm Multimode (Other Fiber available Too)

Features:
– Excellent mechanical and environmental performance.
– Small cable diameter, self-supporting, easily to install.
– Low dispersion and attenuation.
– Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features.
– Cross section shows figure 8.
– Stranded wires as self supporting member providing excellent strain performance and convenient installation.
– Steel-wire strength member provides good tensility,ensures tensile strength.
– Water blocking system to improve the water proof ability.

Application:
– Suitable for aerial duct and buried method
– Long distance and local area network communication
– CATV & computer networks system

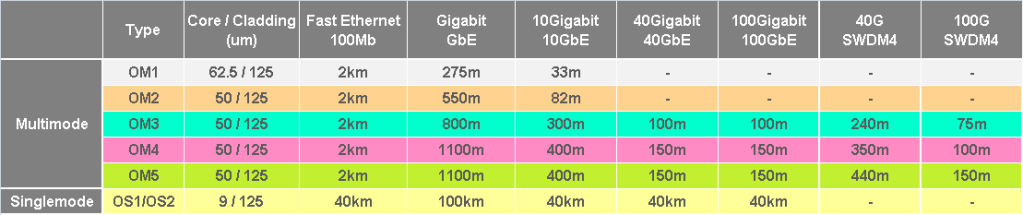

Fiber Optic Cable Transmission Distances

Note.

1 .Flooding jelly compound default

2.The relevant technical parameters can be adjusted according to the customers’ demands;
3.The block water way can be adjusted according to the customers’ demands,

4.The design flame resistance,anti-rodent,termite resistant cable according to the customers’demands

How to Ensure the Quality and Performance of Your Fiber Optic Cable?

We conrol the product quality from the raw maielal to the finish porduts. All the raw maielal shoud be tesied to match the Rosh standard when they arrived at our manuafacture. We contothe qualty duning the producing process by advanced techmolgy and equipments. We test the finished products according to he test standard. Approved by various proffesional opical and communication product institution. We also conduct various in-house testing in is own laboratary and test Center. we also conduct test with spcial arrangement with the chinese Government Ministry of QualityS upervision & Inspection Center of Optical Communication Products(QSICO).

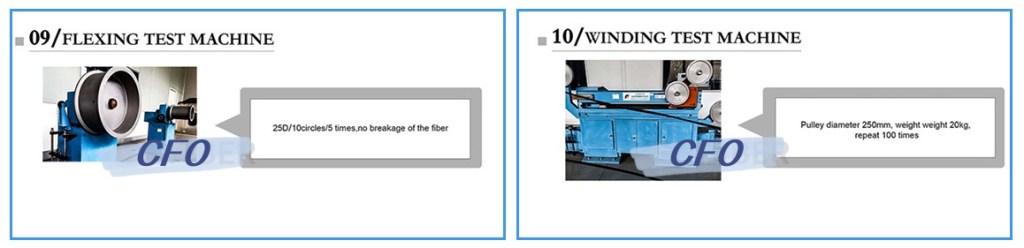

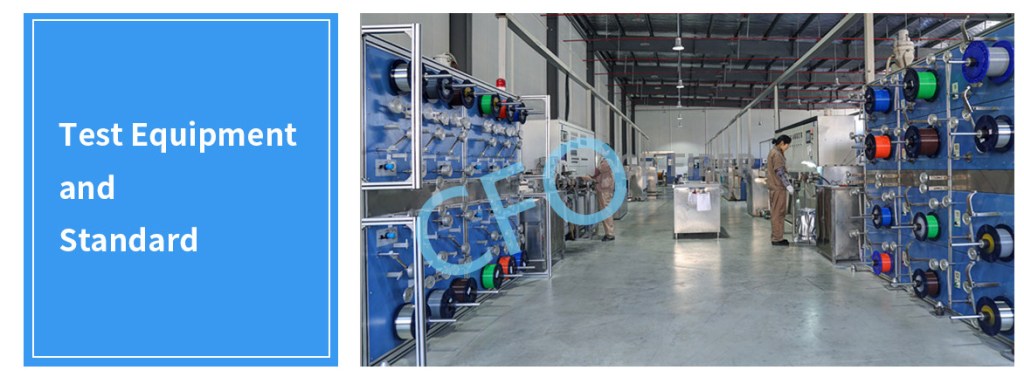

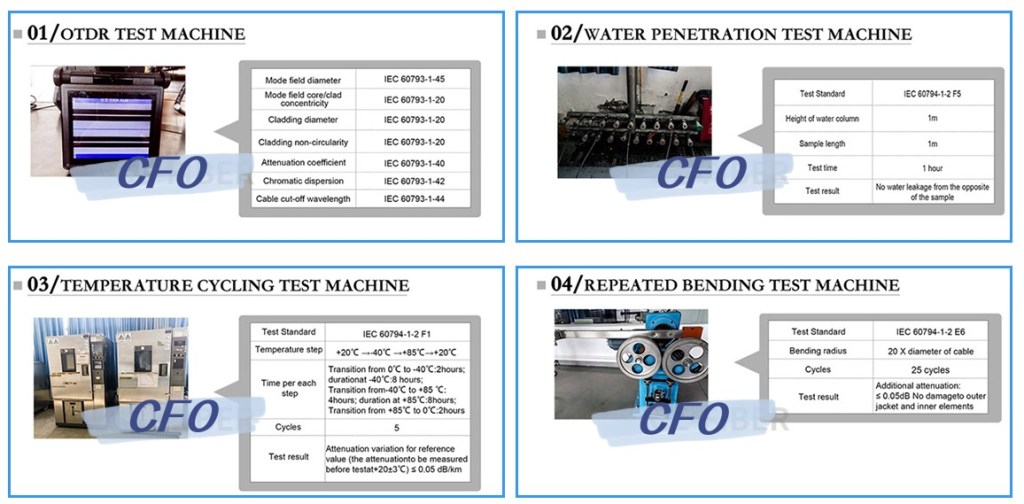

Quality Control . Test Equipment and Standard:

Feedback: In order to meet the world’s highest quality standards,
we continuously monitor feedback from our customers.
Forcomments and suggestions,please.contact us

Packaging Details :
1-5KM per roll. Packed by steel drum . Other packing available according to client’s Request.

Sheath Mark:

The folowing printing(white hot folil indentations applied at 1 meter intenals.
a. Supplier. CFO or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count;
c. Year
of manufacture:7 years,
d. Length marking in meters.

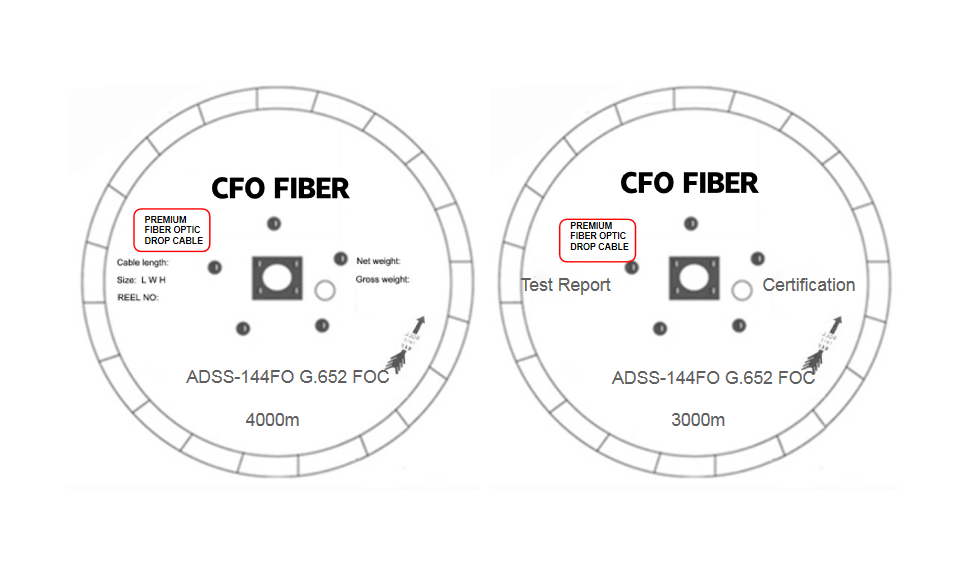

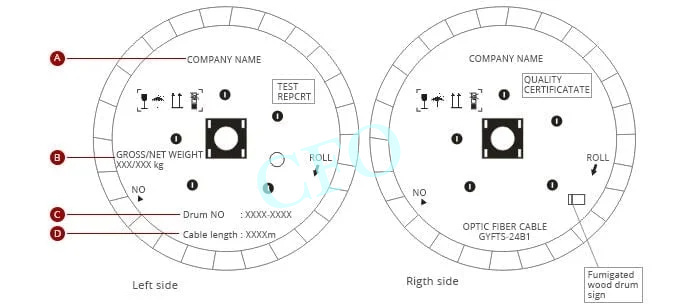

Drum Mark:

Port :

Shanghai/Guanazhou/Shenzhen

Lead Time :

1). 1-300KM: 15days

2). ≥300KM: To be negotiated!

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment

The cables are coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be
protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing. protected from mechanical stress and damage.

CFO is one of the leading China manufacturers and suppliers providing you with 144 Core GYTC8S Figure-8 Fiber Optic Cable. Our factory has applied the most advanced equipment and technology to better serve you.

Contact our professional consultants today.
