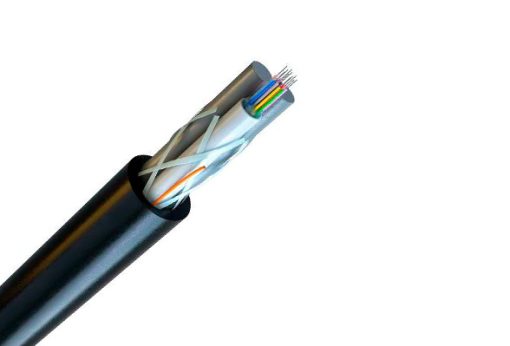

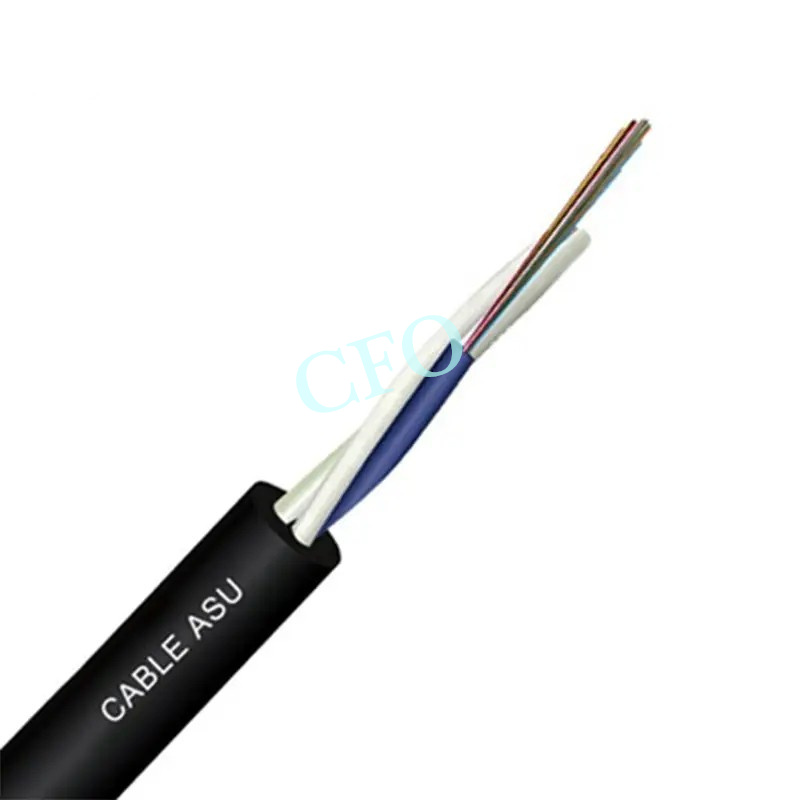

12/24 core ASU Fiber Optic Cable

12/24 core ASU Fiber Optic Cable G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber.

Tags: 12 core ASU Fiber Optic Cable, 24 core ASU Fiber Optic Cable, ASU, asu 120, asu 80, asu cable

12/24 core ASU Fiber Optic Cable
12/24 core ASU Fiber Optic Cable G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication.

Feature:
◆Proven all-dielectric loose tube construction
◆Immune to electromagnetic fields
◆Fast, one-step installation
◆Integrated FRP strength elements
◆Round cable profiles minimize wind and ice loading

Applications
– Installation on medium and long distance LAN backbones, where a compact and robust cable is required.

Reference Standard

IEC 60794-1-1/2
IEC 60794-2
IEC 60794-3
IEC 60794-3-10/11
IEC 60794-1-2-E1/E3/E4/E6
IEC 60794-1-2-E11A
IEC 60794-1-2-F5B
IEC 60794-1-2-F1

Characteristics
– Transmission capacity in 1310nm and 1550nm.
– Cables for a maximum span of up to 120 meters.
– Quantity of optical fibers: 12.
– Nominal External Diameter (mm): 8.0±0.3.
– Nominal Net Weight (kg/km): 65±10.
– Fully dielectric cable.
– Single-mode G.652D fiber.

Product Specification 12/24 core ASU Fiber Optic Cable:

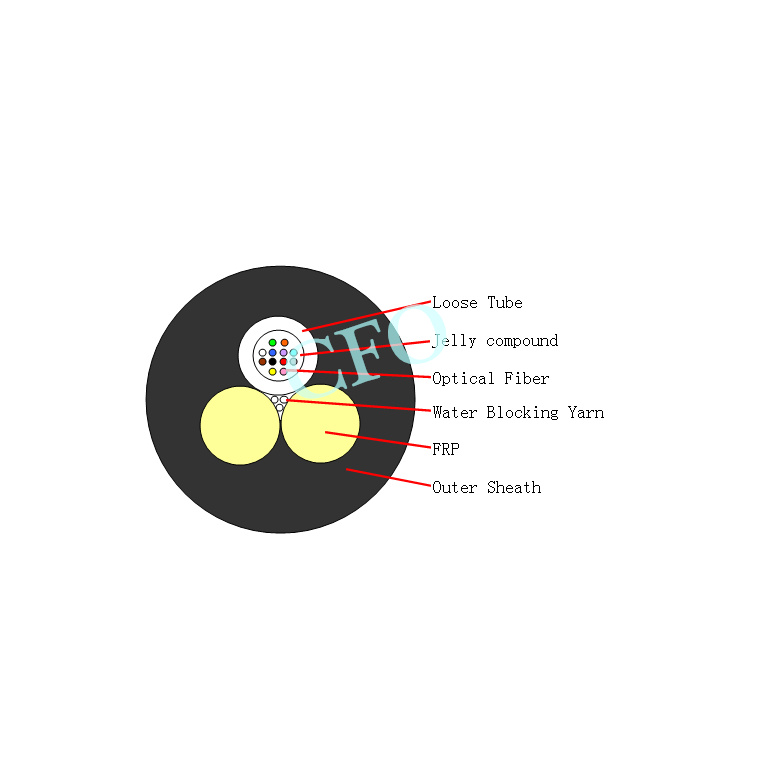

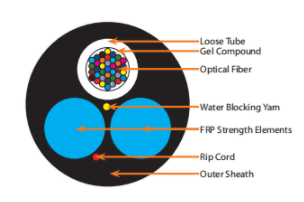

Structure Design:

Product Specification ASU fiber cable:

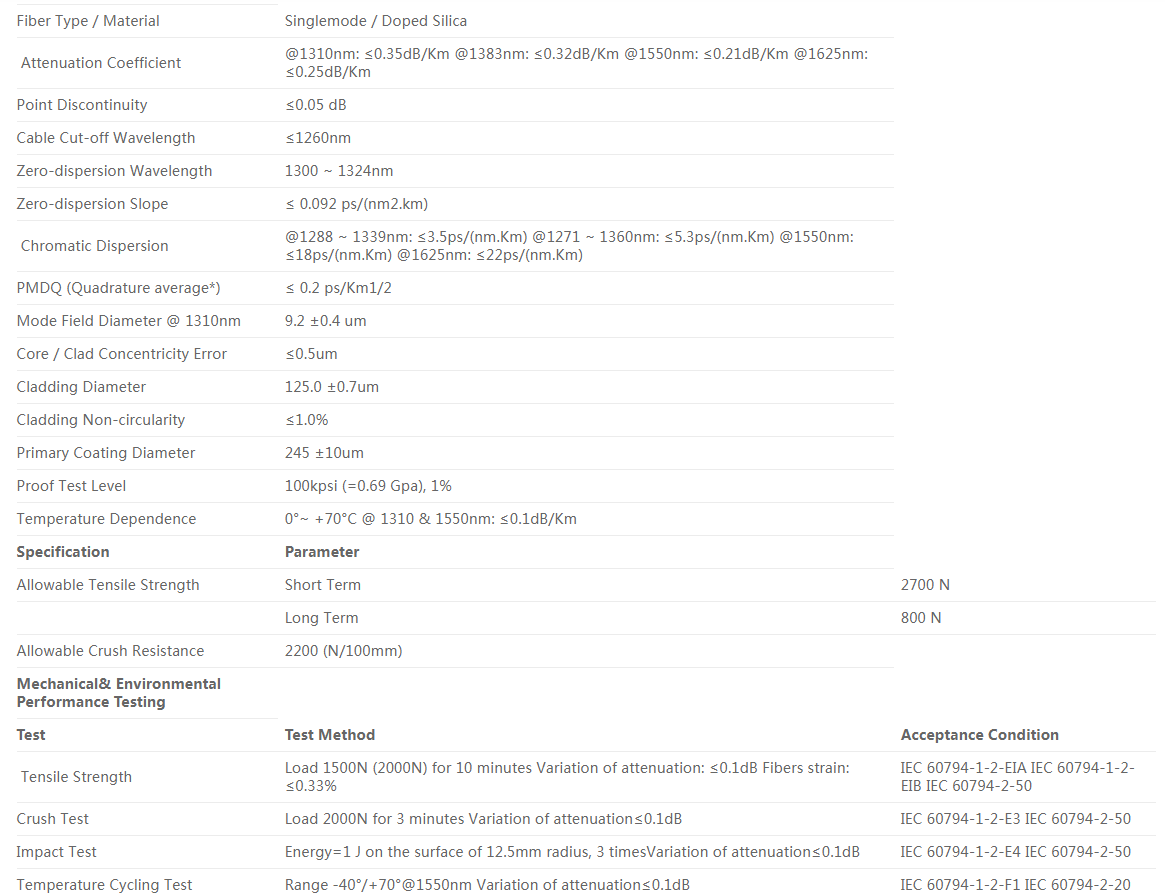

Specification of Singlemode Optical Fiber (G.652.D)

Note.

1 .Flooding jelly compound default

2.The relevant technical parameters can be adjusted according to the customers’ demands;
3.The block water way can be adjusted according to the customers’ demands,

4.The design flame resistance,anti-rodent,termite resistant cable according to the customers’demands

How to Ensure the Quality and Performance of Your Fiber Optic Cable?

We conrol the product quality from the raw maielal to the finish porduts. All the raw maielal shoud be tesied to match the Rosh standard when they arrived at our manuafacture. We contothe qualty duning the producing process by advanced techmolgy and equipments. We test the finished products according to he test standard. Approved by various proffesional opical and communication product institution. We also conduct various in-house testing in is own laboratary and test Center. we also conduct test with spcial arrangement with the chinese Government Ministry of QualityS upervision & Inspection Center of Optical Communication Products(QSICO).

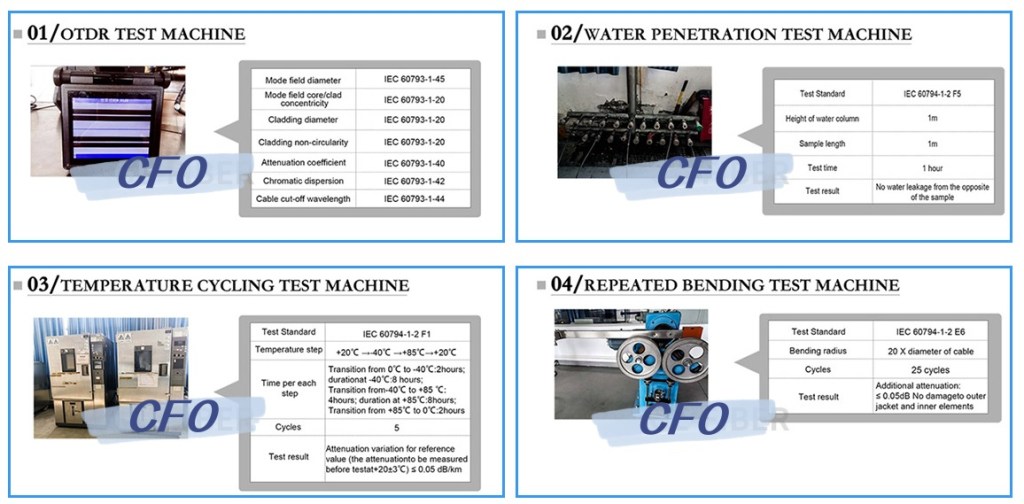

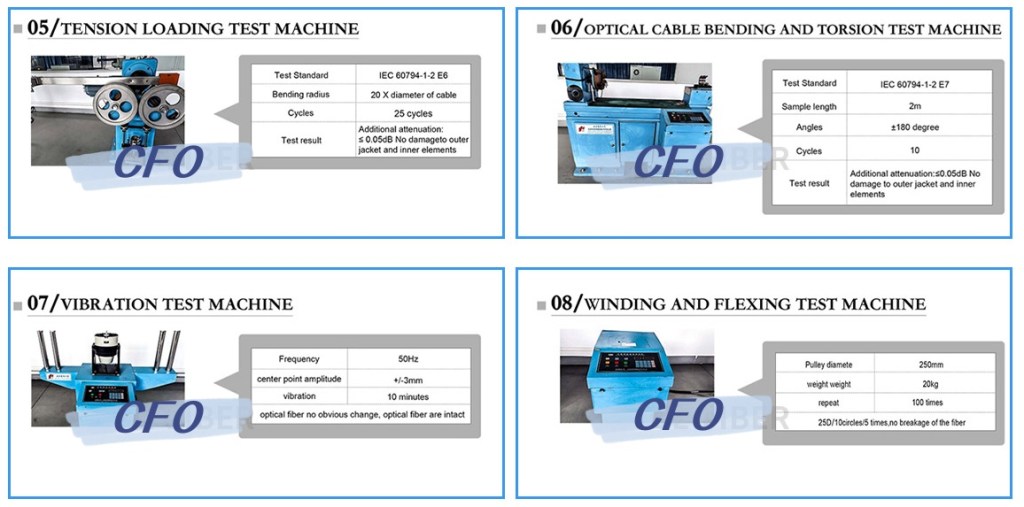

Quality Control . Test Equipment and Standard:

Feedback: In order to meet the world’s highest quality standards,
we continuously monitor feedback from our customers.
Forcomments and suggestions,please.contact us

Packaging Details :
2-5KM per roll. Packed by steel drum . Other packing available according to client’s Request.

Sheath Mark:

The folowing printing(white hot folil indentations applied at 1 meter intenals.
a. Supplier. CFO or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count;
c. Year
of manufacture:7 years,
d. Length marking in meters.

Drum Mark:

Port :

Shanghai/Guanazhou/Shenzhen

Lead Time :

1-300KM:15days

≥300KM:To be negotiated!

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment

The cables are coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be
protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing. protected from mechanical stress and damage.

CFO is one of the leading China manufacturers and suppliers providing you with 12/24 core ASU Fiber Optic Cable. Our factory has applied the most advanced equipment and technology to better serve you.

Contact our professional consultants today.
