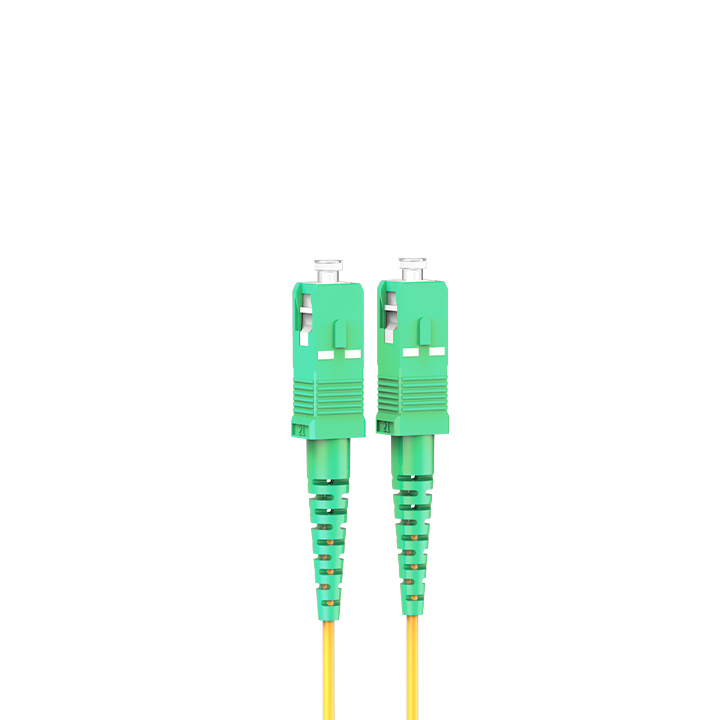

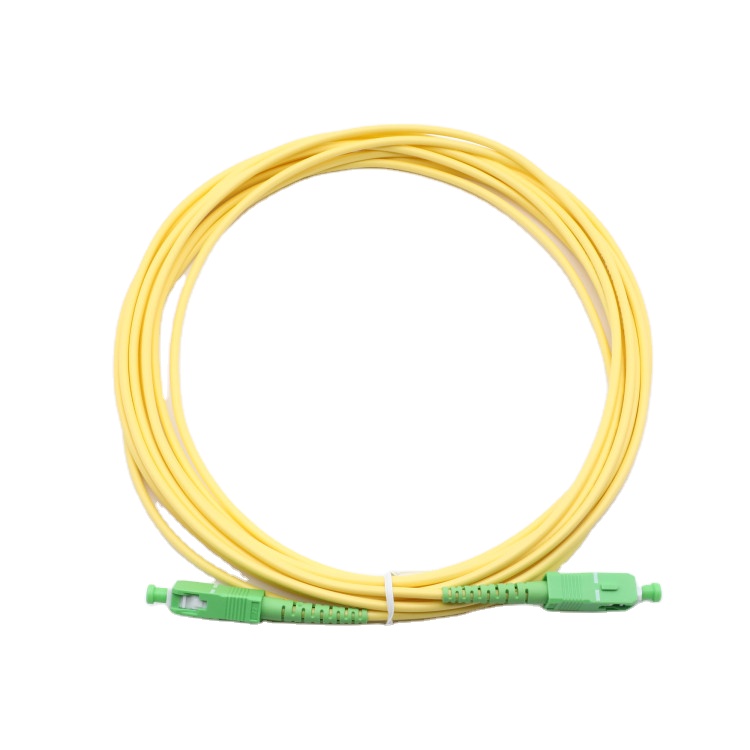

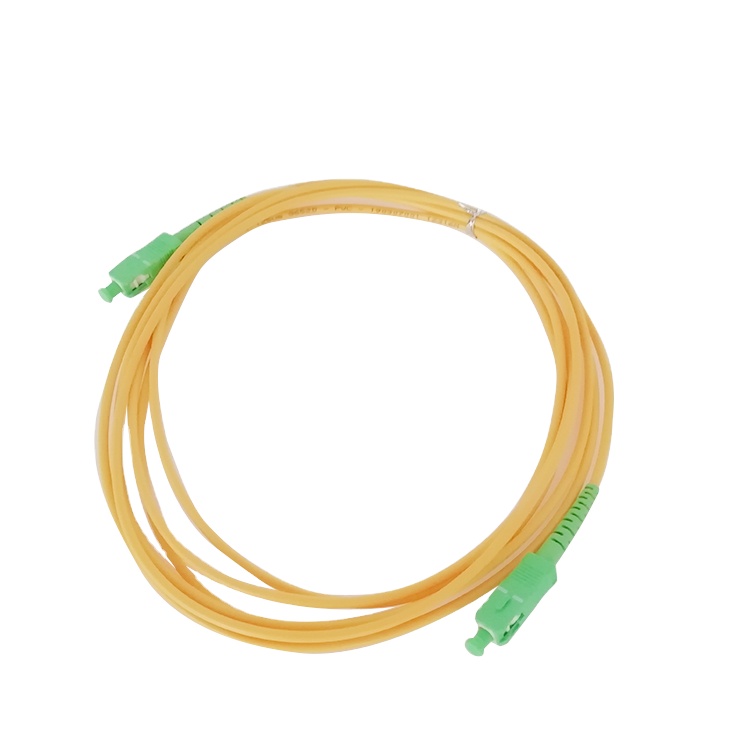

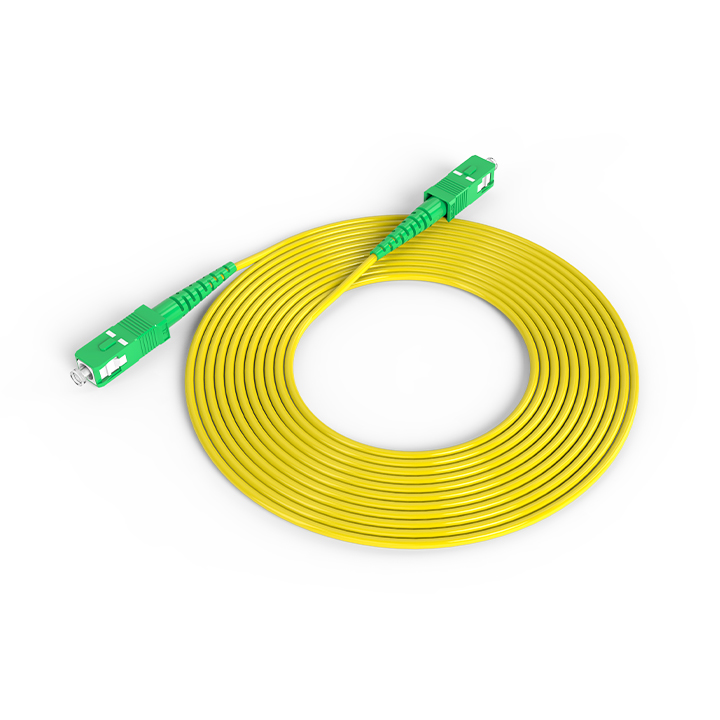

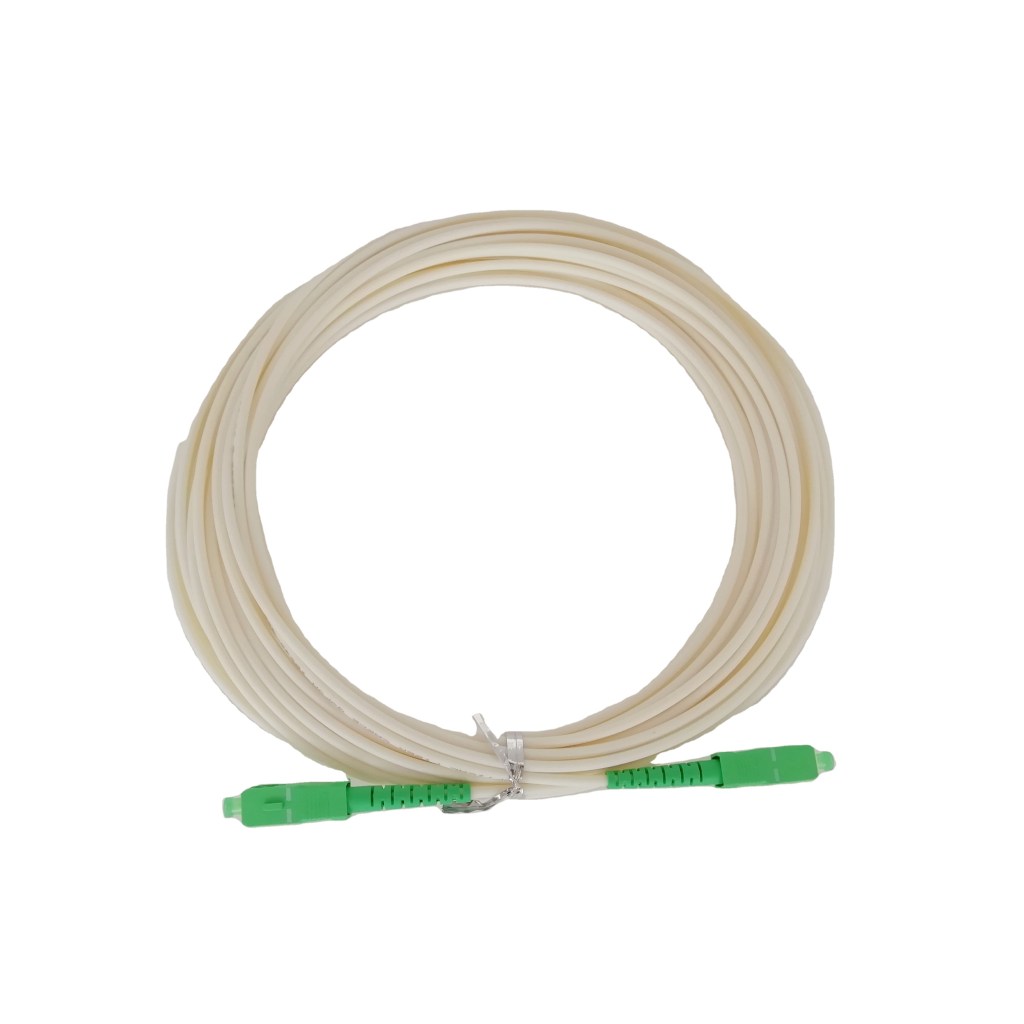

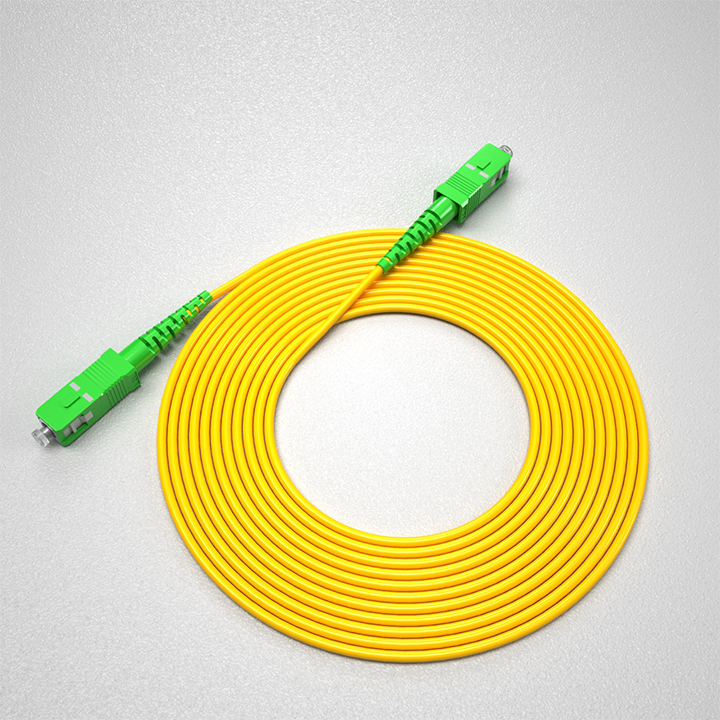

SC/APC-SC/APC | Single Mode G657.A2 Simplex Patch Cord | 2.0mm is a fiber-optic patch cable capped at either end with Fiber optic connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch,Optical Transceiver Modules SFP ,Media converter,optical transmitter, receiver, and the terminal box or other telecommunication and network equipment and switch.

Tags: fiber optic patch, fiber optic patch cable, fiber optic patch cord, fiber optic patch cord price, fiber optic patch cord types, fiber patch, fiber patch cables, fiber patch cord, fiber patch cord price, fiber patch cord types, patch cable, patch cable price, patch cord, patch cord cable, patch cord fiber, patch cord fiber optic, patch cord price, patch cord types

What Is SC/APC-SC/APC | Single Mode G657.A2 Simplex Patch Cord | 2.0mm?
SC/APC-SC/APC | Single Mode G657.A2 Simplex Patch Cord | 2.0mm is a fiber-optic patch cable capped at either end with Fiber optic connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch,Optical Transceiver Modules SFP ,Media converter or other telecommunication and network equipment and switch. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.

SC (Square Connector) type connectors have 2.5 mm diameter ferule structure. The abbreviations PC, UPC and APC are definitions expressing the physical differences of the surface geometries of the connectors on the ceramic ferrules. UPC (Ultra Physical Contact) indicates that the ceramic ferule structure on the connector has an extra polished flat structure; APC (Angled Physical Contact) indicates that the ceramic ferrule structure on the connector has an extra polished 8 ° angle structure.

2.0 mm diameter patch cord cables are manufactured with ITU-T G657.A2 bend sensitive fibers, then assembled at both two ends with SC type connectors.

Specifications
▶Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB
▶Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC)
▶Durability: 500 matings
▶Flammability: UL94 V-0
▶Operating Temperature: -40°C to +85°C
▶Connector End Face Geometry: IEC 61755-3
▶LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS
▶SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS
▶FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS
▶ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS
▶LSH Connector Compliance: IEC 61754 – 15, TIA 604 – 16, RoHS

SC/APC-SC/APC | Single Mode G657.A2 Simplex Patch Cord | 2.0mm

Please be free to buy our SC/APC-SC/APC | Single Mode G657.A2 Simplex Patch Cord | 2.0mm products with competitive price. The customized service and the quotation consultation are available.

Quality production Stages For SC/APC-SC/APC | Single Mode G657.A2 Simplex Patch Cord | 2.0mm
So what should be taken into consideration when choosing a ‘good’ SC/APC-SC/APC | Single Mode G657.A2 Simplex Patch Cord | 2.0mm? What are the features that one should look for that defines the quality of any connector or jumper assembly? In order to appreciate the significance of a standard compliant product, one must first understand the process of actually making an optical connector assembly and the potential problems that could occur at each of the stages.

There are three main processes in the termination of a jumper Patch Cable, Preparation, Termination and Polishing and a total of 15 steps where negligence at any one of the steps will result in an inferior jumper assembly. Each process consists of small steps, and each step requires strict Quality Control of not only the equipment used, but also how each step is carried out.

preparation of fiber cable
Stripping of outer cable jacket
trimming of kevlar fibers to length
Stripping of 900um buffer
clean bare fiber
check fiber for damage
mix two part epoxy
degas epoxy
check ferule id
termination of fiber cable
inject epoxy and insert fiber
crimp kevlar to back post
crimp outer jacket
cure connector in oven
polishing of connector end face
cleave fiber
Remove excess epoxy by hand or machine
polish end-face by grinding machine

CFO is one of the leading China manufacturers and suppliers providing you with SC/APC-SC/APC | Single Mode G657.A2 Simplex Patch Cord | 2.0mm. Our factory has applied the most advanced equipment and technology to better serve you.
