SC APC UPC FTTH Drop Cable Patch Cord

SC APC / UPC FTTH Drop Cable Singlemode Simplex Butterfly Flat Indoor Patch Cord,Butterfly Flat Indoor FTTH Drop Cable patch cord.

Tags: drop cable patch cord, ftth drop cable patch cord, ftth-sc/apc, indoor drop cable patch cord, patch cord sc upc, sc drop cable patch cable(fiber), sc drop cable patch cord, sc drop cable patches, sc patch, sc patch cable, sc patch cord, sc patch cord full form, sc/apc patch cord, sc/upc patch cord

What Is SC APC UPC FTTH Drop Cable Singlemode Simplex Butterfly Flat Indoor Patch Cord ?
SC APC UPC FTTH Drop Cable Singlemode Simplex Butterfly Flat Indoor Patch Cord It’s a kind of patch cable but assembly with Butterfly Flat Indoor FTTH Drop Cable. This is a last cable in FTTH project. Used widely between Fact plate, terminal box, ONU tec. With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes. It is suitable for connecting with communication equipment and used as access building cable in premises distribution system. The optical fibers are positioned in the center of cable and two parallel Fiber Reinforce Plastic (FRP/KFRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath. Also, customers can specify your required connectors.

Product Name : SC APC/UPC SX SM FTTH Drop Cable
Insertion Loss : <0.3dB Return Loss : APC>60dB,UPC>50dB
Fiber Type : Singlemode G.657A
Operating Temperature : -40 to +85 °C

Connector’s Standard:
SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973. LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

Feature of SC APC UPC FTTH Drop Cable Patch Cord:

Good mechanical and environmental characteristic
Simple structure, light weight and high practicability
Low smoke zero halogen and flame retardant sheath
Novel flute design, easily strip and splice, simple installation and maintenance
Two parallel FRP strength members ensure good performance of anti-electromagnetic and crush resistance
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

Application:
Access Networks
LAN (Local Area Network)
Fiber Optic Communication System
FTTH (Fiber to The Home) Indoor Building
Optical fiber connected and transmitted equipment

Ideal Solution by FTTH Indoor Fiber Patch Cable
Butterfly Flat Indoor Drop Cable is widely used in fiber to the home (FTTH) network system, which can directly connect the communication line from the LAN to the end users. Butterfly flat drop cable uses special low-bend-sensitivity fiber to provide high bandwidth and excellent communication transmission, it’s very suitable for indoor cabling, end users directly cabling, and access network.

ftth drop cable ideal solution

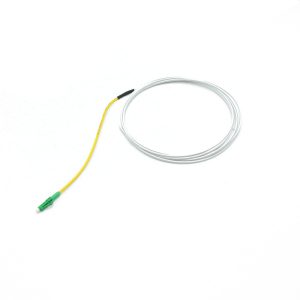

SC APC FTTH Drop Cable Singlemode Simplex Butterfly Flat Indoor Pigtail

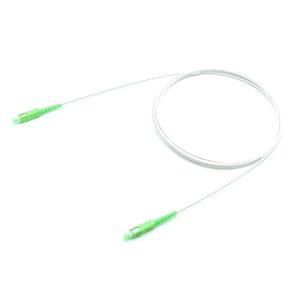

SC UPC FTTH Drop Cable Singlemode Simplex Butterfly Flat Indoor Patch Cord

SC APC FTTH Drop Cable Singlemode Simplex Butterfly Flat Indoor Patch Cord

Looking for ideal FTTH Drop Cable Singlemode Simplex Butterfly Flat Indoor Patch Cord Manufacturer & supplier ?

CFO have a wide selection at good prices to help you get creative. All the SC APC / UPC FTTH Drop Cable Singlemode Simplex Butterfly Flat Indoor Patch Cord are quality guaranteed. We are China Origin Factory of SC APC / UPC FTTH Drop Cable Singlemode Simplex Butterfly Flat Indoor Patch Cord.

If you have any question, please feel free to contact us.
Contact our professional consultants today.
Skype: leorumin1987
Email: fibercableoem@foxmail.com
Linktr.ee: https://linktr.ee/LEOFIBER
